How Silly is Climate Change Denial?

Free episodes:

I'm not only focused on methane. I use it as an example of "stored energy" that can possibly change global climate.

I leave it up to the fish farmers to present their science at the climate change conferences, that is, if they would even be allowed to do it. If they can't get peer review in the legitimate science journals, then I won't waste my time learning from them. I'd prefer to learn from climate/weather scientists that have made this their careers for at least 30-50+ years of serious study and a long peer review history to prove it.

I honestly believe in the next 10-20 years the computer models and additional data will be accurate enough to wipe-out all the BS of political climate Internet howling nutcases with non-political science accuracy.

I'd prefer to learn from climate/weather scientists that have made this their careers for at least 30-50+ years of serious study and a long peer review history to prove it.

Good lad, you go and do that, then come back and tell us all just one thing the fish farmers got wrong, instead of sitting there handwaving and talking shite..

Just curious, why are you so emotionally upset over different POV and rely on the fish farmer "science" or opinion analysis?

Do you think it is possible that humankind could cause a tipping point "butterfly effect" in the climate change equation, so that weather patterns and global climate is changed once natural forces are put into play by a seemly slight change known as the butterfly effect?

I dont get emotionally involved, i just speak my mind, and at times i dont bother with the sugar coating, i think you are a sock-puppet account, so im not gonna be biting on your nonesense, prove the fish farmers wrong on any of their science, assessments or Conclusions of others science, then come back handwaving.

Last edited:
I honestly believe in the next 10-20 years the computer models and additional data will be accurate enough to wipe-out all the BS of political climate Internet howling nutcases with non-political science accuracy.

We can only hope. But there have been some irreversible things set in motion.

I love this clip from "The Newsroom":


Wasn't there a news article about the Norwegians trying to pump CO2 underground or under the sea floor?

I think you've exposed yourself as emotionally upset to use name calling like "sock puppet" and "hard on for Chris" and claiming I'm someone else. Your dependency on fish farmer opinion analysis rather than peer reviewed science. Etc.

Bizarre!

Again, a rational question for you to consider:

Do you think it is possible that humankind could cause a tipping point "butterfly effect" in the climate change equation, so that weather patterns and global climate is changed once natural forces are put into play by a seemly slight change known as the butterfly effect?

Aye righto lance, if you say so.
Seriously??? Really, now, seriously?

The 'only' thing that I was very critical about was a crappy book, imo, very misleading, about Skinwalker Ranch. I exposed a serious error in the book too that was very misleading. For that series of posts I was tagged to be Lance.

Sorry! I'm not Lance. I took a 4+ month break from this Forum to avoid these kinds of personal attacks. I'm aware of the ignore feature, so I can use that too.

Let's try and stick to the subjects at hand and stay on topic.

You mentioned ice and methane, heres an accurate over-view, maybe you can find fault with it.

I suppose if you cannot fault it, you can always pad out with some more whitty comment.



Since satellite records began, there seems to have been a general decline in average Arctic sea ice extent. Interestingly, this hasn’t occured for Antarctic sea ice.

The satellite records only began in October 1978, however. This coincided with the start of a recent warming trend in the Arctic. Before that, from the 1950s-1970s, Arctic temperatures were cooling. So, it is quite likely that in the decades immediately before the satellite records began, average Arctic sea ice extent was actually increasing, but we just weren’t monitoring it. It seems that the Arctic sea ice extent naturally goes through periods of expansion, followed by periods of contraction.

In case you’re unsure about which is which, the Arctic is the polar region in the north (the one with polar bears, etc.) and the Antarctic is the polar region in the south (the one with penguins, etc.)

In this essay, we look at what we know about Arctic sea ice extent.



1. The satellite era
Every winter, the sea ice in the polar regions grows, but then in the summer, it melts again.

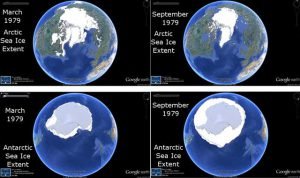

Figure 1. Minimum and maximum sea ice extents for northern and southern hemispheres in 1979. Click to enlarge.

Since winter and summer are reversed between the southern and northern hemispheres, this means that as the Arctic sea ice reaches its maximum extent in March, the Antarctic sea ice is reaching its minimum extent. By September, the situation has reversed (minimum Arctic and maximum Antarctic sea ice). This can be seen from the Google Earth images in Figure 1 (generated using data from NSIDC).

Figure 2. Trends in maximum (March), minimum (September) and average annual sea ice extents for the Arctic, since records began in 1979. Error bars for the average value correspond to the standard errors. Click to enlarge.

This cyclical pattern occurs every year. However, since satellite records began in 1979, the maximum (March) and minimum (September) sea ice extents in the Arctic seem to have been gradually decreasing. This can be seen from Figure 2 (generated using NSIDC data).
This has led many people to worry that it is man-made global warming which is causing the Arctic sea ice to melt, and that humans are therefore destroying an entire ecosystem, threatening animals such as polar bears.

As a result, much of the research in the Arctic in recent years has become dominated by a heavy focus on man-made global warming, rather than studying the Arctic as a fascinating region in itself. See for example, the Greenpeace video below:


Figure 3. Trends in maximum (September), minimum (March) and average annual sea ice extents for the Antarctic, since records began in 1979. Error bars for the average value correspond to the standard errors. Click to enlarge.

Interestingly, even though you might expect “global” warming to occur globally, in the southern half of the world, the Antarctic sea ice extent doesn’t seem to have changed much (see Figure 3). This apparent paradox has puzzled those who believe the Arctic melting is due to man-made global warming.
As a result, some groups have struggled to come up with explanations as to why man-made global warming is not causing melting of Antarctic sea ice. For example, Zhang, 2007 (Open access) proposed that warmer waters off Antarctica might make the water less salty, and that maybe this would stop the ice from melting. We believe a much simpler explanation is that the changes in the Arctic sea ice are not due to the “man-made global warming” assumed by current climate models. If the explanation is not “CO2-related”, then we would no longer need to worry about why the models don’t match the data – it would just mean that the models are wrong.

At any rate, since the Antarctic sea ice extent doesn’t seem to be declining, the public concern over sea ice seems to be confined to the Arctic. With that in mind, let us limit our discussion in this essay to the Arctic, i.e., the region which has shown a decrease in polar sea ice. The fact that the Arctic sea ice seems to have been steadily decreasing “since records began” does initially seem alarming. However, as we will see below, this is because “the records” only began in October 1978, as the satellites weren’t launched until then.

There may be some problems with the satellite estimates of sea ice extent, e.g., see here. Estimating sea ice extent from satellites is a complex problem – the satellites aren’t actually photographing the amount of ice, so it’s not a simple case of looking at a photograph and saying “oh, there’s some ice there, and none there”.
Instead, they measure microwave emissions. Analysts then try to convert those measurements into estimates of sea ice. These conversions rely on several different assumptions being valid. If there are problems with those assumptions, it may affect the reliability of the satellite estimates.

However, for the purposes of this post, we assume that the satellite estimates are reliable.


2. What do we know about Arctic temperatures?

Figure 4. Top panel: Unadjusted average temperature trends of all GHCN stations in the Arctic Circle. Thick solid line corresponds to a smoothed average (11 point binomial). Bottom panel: Number of stations available in a given year. Taken from our Urbanization bias III paper. Click to enlarge.

In Figure 4, the average annual temperature trends for the Arctic are shown (the graph is taken from our “Urbanization bias III” paper). We can see that there has indeed been a warming trend since the late 1970s. However, if we look at the rest of the data, the problem of the sea ice record only beginning in 1979 should become obvious – the warming trend since the 1970s followed a cooling trend from the 1940s. If the sea ice records had started just a bit earlier, they would probably have first shown sea ice growth!
Before the 1940s-1970s Arctic cooling, there also seems to have been another warming period (1900s-1930s). We do not have enough weather records to reliably tell what happened to Arctic temperatures before the 20th century, but it is at least plausible that similar cooling and warming periods also occurred then. It seems that temperatures in the Arctic naturally alternate between periods of warming and periods of cooling.

In the next sections, we will argue that sea ice conditions in the late 1970s were relatively severe. So, the fact that the Arctic sea ice extent seems to have been decreasing since then is not an indicator of “unusual and dramatic melting of the Arctic”. Instead, it seems that the satellite monitoring of the Arctic sea ice just coincidentally started at the wrong time, i.e., just when the last Arctic cooling period had ended!

But before we get to that, some readers might say, “If you look at the graph of Arctic temperatures since 1880, the linear trend shows warming, so that must be due to human activity!”. Well, no.

First, the trends are non-linear, so the “linear trend” is irrelevant. There are periods of both warming and cooling, so the linear trend changes depending on where you start and end your analysis. If you want to, you can technically calculate a “linear trend” for any (x,y) dataset, but if it is non-linear data, as is the case here, then it is a meaningless calculation. See our “Urbanization bias I” paper for more discussion.

Second, there is no reason to assume warming must be “man-made”, rather than just a natural occurrence. For instance, Prof. Syun-Ichi Akasofu, the founding director of the International Arctic Research Center (retired in 2007) argues that the world may still be recovering naturally from the Little Ice Age of the 18th and 19th centuries. Dr. Willie Soon has found that the warming and cooling trends in the Arctic are actually strongly correlated to changes in solar activity, e.g., Soon, 2009 (Abstract; Google Scholar access).

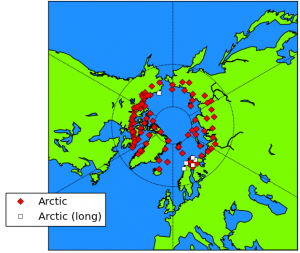

Figure 5. Locations of stations used for constructing the above graph. The 6 stations with data for at least 75 of the last 80 years are shown with white squares. Click to enlarge.

Finally, as we discuss in our “Urbanization bias III” paper, there are very few stations with long records available for the Arctic (see the bottom panel of the earlier figure showing Arctic temperature trends). The map in Figure 5 shows the locations of all the available stations – only six of the stations have data for 75 of the last 80 years, and five of them are from a relatively small region (northern Scandinavia).
This means that if there are non-climatic biases in any of the station records, it could strongly alter the apparent trends of the average “Arctic temperatures”. This is a particular concern for periods when the number of stations were very low, e.g., there appears to have been a sudden warming step change at about 1920, but there were only a few stations actually available then, so it is hard to know if the apparent step change was genuinely climatic.

For example, many of the Arctic stations are airport stations, and improvements in the airport infrastructure, such as insulation of permafrost-based runways (e.g., Instanes & Mjureke, 2005) could easily have introduced warming biases in recent decades.

Also, you might not think urbanization bias would be a major problem in the Arctic, since most of the big cities are at lower latitudes. But, in tundra conditions, even modest urbanization can introduce significant biases.


Figure 6. Comparison of temperature trends for two of the six Arctic stations with relatively long and complete records. Thick solid lines correspond to smoothed averages (11 point binomial). Taken from our Urbanization bias III paper. Click to enlarge.

For instance, even though Barrow, Alaska (USA) still has a relatively small population (4,500 in 2000), urbanisation has led to a considerable urban heat island there in recent years – see Hinkel et al., 2003(Open access). This would have introduced an artificial warming trend which would make the recent warm period seem warmer than it actually was. In comparison, the rural Sodankylä, Finland station also shows a warming trend since the late 1970s, but it followed a cooling period from the 1940s, and its warmest year was actually in 1937 (see Figure 6).
So, unfortunately, the data is really too limited to make definite conclusions (e.g., only six stations with data for 75 of the last 80 years, and at least one of them is known to have an urban heat island). It may well be that the recent warm period was warmer than the early 20th century warm period, as the raw data suggests… Or it may be that biases in the raw data are substantial, and the early 20th century warm period was just as warm as the recent warm period, or maybe even warmer.

Whatever the case, it is clear that the Arctic seems to alternate between periods of warming and periods of cooling. Hence, the fact that “the Arctic sea ice has been decreasing since records began” is merely down to the fact that the records only began in 1978. In the next sections, we will try to estimate how sea ice varied, before the satellite era.

3. The pre-satellite era
A few groups have attempted to construct sea ice estimates for the pre-satellite era using various combinations of land, ship, submarine, buoy and aircraft measurements made over the years, e.g., the Chapman & Walsh dataset or the Zakharov dataset (Note that the server for the Zakharov dataset is not always online, so the link sometimes doesn’t work). These datasets represent a considerable amount of compilation work, and probably could be used to extract useful climate information. But, as we will discuss below, there are too many inconsistencies in the data sources for a simple analysis.

Some people have used these datasets to argue that the decreasing trend during the satellite era is an acceleration of an already decreasing trend in the pre-satellite era. For instance on the “Open Mind” blog, the blogger “Tamino” has used the Walsh & Chapman dataset to claim that the satellite era melt is unprecedented, e.g., here. However, these datasets should not be used for estimating long term trends. The problem is that such datasets are actually composite datasets constructed by compiling together as many measurements as the researchers can for a given year.

The measurement sources vary dramatically over the years. For instance, in Siberia, measurements up until the late 1930s were mostly from shipping lane reports, while after the late 1930s they mostly came from aircraft measurements. In addition, the actual regions with available data varied substantially over the decades. So, a sea ice estimate for a region constructed from shipping reports in the 1920s might not be directly comparable to an estimate for the same region from the 1940s made from aircraft measurements. Hence, they cannot be used for calculating long term trends.

We suspect that with careful work and calibration, it might be possible to construct useful long term trends for at least part of the pre-satellite era. However, they don’t seem to be reliable yet. For example, we saw in the previous section, that the temperature records show a period of substantial warming followed by a period of substantial cooling up to the satellite era. But, pre-satellite sea ice datasets such as Walsh & Chapman’s don’t show any of that variability in the pre-satellite era.

So, unfortunately, we can’t use the pre-satellite estimates for assessing how unusual the recent melting has (or hasn’t) been. Fortunately, there are ways of assessing how unusual the sea ice in 1979 (at the start of the satellite era) was. If the claim that the recent Arctic melting is unusual and due to man-made global warming were true, then this would mean that the sea ice extent in September 1979 was relatively low (September being the month of minimum sea ice in the Arctic).

In the following section, we will assess this claim, by trying to answer the question, “Would the great 19th and early 20th Arctic explorers have been able to carry out all their voyages if they had attempted it during 1979 conditions?” If September 1979 sea ice extent was already quite low, then 1979 conditions would have been relatively easy for them. However, as we will see, many of the early explorers managed to get much further than they could have in 1979. In other words, at the time of those voyages, the sea ice extent was probably much lower than it was at the start of the satellite era.


4. The great Arctic explorers
We have created a Google Earth file with approximate estimates of the various voyage paths described below. To construct the paths we downloaded estimated maps of the voyage paths, and manually clicked the approximate routes on Google Earth.
To generate the maps below, we first loaded Google Earth (if you haven’t already installed it, it is a brilliant program… and it’s free!).

Then we ran NSIDC’s September sea ice extent Google Earth file (downloaded from here), clicked play to let the video run through once (you need to do this to let Google Earth load the images), and then we scrolled the time bar back to 1979 (the date at the top says “1/1979″, but the NSIDC file only shows September values, so it actually means 9/1979).

Then we ran our Arctic voyages Google Earth file (that we had made earlier). When it’s first loaded, all voyages and placemakers are shown. But, you can deselect the ones you’re not interested in using the “Places” panel on the left hand side. Finally, we rotated our view and zoomed in as appropriate, and created a snapshot (File/Save/Save Image).


Voyages reviewed in this post
Region Route Date of voyage Description
Canadian Arctic Northwest Passage 1819-1820 William Parry’s voyage to Melville Island
Canadian Arctic Northwest Passage 1845-46 John Franklin’s last voyage
Canadian Arctic Northwest Passage 1903-1906 Roald Amundsen’s Northwest Passage expedition
Canadian Arctic Northwest Passage 1940-1942; 1944 St. Roch’s Northwest Passage expeditions
Russian Arctic Northeast Passage 1878-1879 S/S Vega’s Eurasian circumnavigation
Russian Arctic Northeast Passage 1933-1934 SS Chelyuskin’s voyage
Russian Arctic Northeast Passage 1893-1896 Nansen’s Fram expedition
Russian Arctic Northeast Passage 1648 Dezhnyov’s discovery of the Bering Strait
Limitations of the following analysis
There are records of many Arctic voyages, some of which might not have been possible in 1979. The fact that these voyages occurred can be used as suggestive indicators of the ice extent in the area at the time. However, unfortunately, they are just that – suggestive indicators.
We believe that the examples below indicate that the Arctic sea ice extent in 1979 was quite high, and that there were many periods over the last few centuries when the sea ice extent was less. If this is correct, then the fact that the sea ice extent has been “declining since records began” (in 1979) doesn’t mean that recent trends are unusual. Instead it suggests that the Arctic sea ice extent shows considerable variability, and the records are just too short to notice.

But, there are a number of potential problems in relying on such records, e.g.,

  • Records of early Arctic voyages are often mostly anecdotal and/or poorly mapped, e.g., see here or here. This is particularly the case for the pre-19th century voyages. So, it is plausible that the voyages didn’t extend as far as is claimed. Of course, it is also plausible that the voyages did do so.
  • We don’t know for definite how far past the 1979 sea ice extent a particular crew would have been able to travel. Stubborn and persistent crews may have inched their way through thicker sea ice than we might expect.
  • The fact that a crew made it through one region on a particular voyage, doesn’t tell us how long the ice was clear.
  • Arctic sea ice is fairly dynamic, and sometimes when the ice in one area is expanding, in another area it might be decreasing. So, if a crew were able to travel ice-free in part of the Canadian Arctic on one day, it is possible that another area in the Siberian Arctic might have particularly heavy ice, for example.
  • The NSIDC “sea ice extent” maps used in this section are not the same as their “sea ice concentration” maps. We will discuss this below.

Figure 7. Comparison between Arctic sea ice "concentration" and "extent" in September 1979. Click to enlarge.

Maps taken from NSIDC define the “sea ice extent” which we use in this section as being the point at which “sea ice concentration” reaches 15%. So, regions within “the white area” were not necessarily completely filled with sea ice. The difference is illustrated in the maps in Figure 7.
When NSIDC are calculating the concentrations for a particular grid cell, they calculate both the area covered by ice and the length of time the ice was there. That is, a mean concentration of 50% for a particular grid cell in September could be the result of 100% concentration at that location for 15 days and 0% concentration for 15 days, 50% concentration for 30 days, or some other combination. For this reason, we can probably only definitively rule out the possibility of travel through regions with 100% sea ice concentration. So, it is plausible that a skilled and lucky crew could find an ice-free window in some such grids. But, travel anywhere within the 15% “extent” boundary would probably have been very challenging. See here for further discussion

So, the following analysis shouldn’t be relied on as conclusive evidence that the Arctic sea ice extent has been less than in 1979 many times in the past, but merely suggestive evidence.

The Northwest Passage (Canadian Arctic)
In the 19th century, there was a lot of interest from European countries, particularly Britain, in discovering a “Northwest Passage”. This would be some ice-free sea route which would allow ships to sail from Europe to Asia through the Arctic north of Canada. If such a route could be established, it could offer a quicker (and therefore cheaper) trade route between Europe and Asia.

In the modern world, where travel and trade can be done by plane, this might not seem a big deal. But, at the time, the only available routes were either to sail down to the southern tip of South America and northwest through the Pacific, or else sail to the southern tip of Africa and then northeast through the Indian Ocean. The Suez Canal (connecting the Mediterranean and Red Seas) was only opened in 1869 and the Panama Canal (offering a short cut through Central America) wasn’t completed until 1914.

Therefore, it is not surprising that several attempts to discover the Northwest Passage were well-funded and documented, and offered fame and fortune to any explorer who could succeed.

Return to voyage list

William Edward Parry’s 1819-20 voyage

Figure 8. Route taken by Sir William Parry's crew on their 1819-1820 Arctic voyage. White areas represent Arctic ice extent in September 1979. Click to enlarge.

One such expedition was that of the HMS Griper and HMS Hecla, led by William Edward Parry. They left England in May 1819, and by August had reached Lancaster Sound. A previous expedition, in 1818, led by John Ross had been blocked from further travel by ice. From the satellite data, it seems that it would have been similar in 1979 (see Figure 8). But, when Parry and his crew arrived, it was remarkably ice-free, and they were able to sail right on through Barrow Strait and onto Melville Island. In doing so the expedition earned a £5000 prize offered by parliament for any voyage that crossed a longitude of 110° West. After reaching Melville Island, they were stopped by ice. They returned to England in November 1820. See here, here and here. Parry’s own 1821 account of the voyage is available here.
Return to voyage list

John Franklin’s last voyage, 1845-46
A more tragic expedition was John Franklin’s final voyage, in 1845-46. By the 1840s, much of the Canadian Arctic coast had been visited and mapped on various British expeditions. Franklin had already led several such successful expeditions. So, in 1845, he was commissioned to explore some of the remaining unknown areas, and hopefully discover the elusive Northwest Passage. Sadly, he and his crew of 128 men became icebound near King William Island, and never returned.

The story of the expedition was the theme of a popular folk song, “Lord Franklin”, sung below by Allister Thompson:

One silver lining of the tragic expedition was that the search for Franklin and his crew in the following years was extensive, and as a result, within a few years, most of the area was mapped.


Figure 9. Possible routes taken by John Franklin's crew on Franklin's ill-fated last voyage (1845-1846). White areas represent Arctic ice extent in September 1979. Click to enlarge.

In cases such as Franklin’s last voyage, the exact route they took is unknown, since it was a failed voyage, and the crew didn’t make it back to describe their voyage. But, their final landing point near King William Island is known, as the wreck was eventually discovered there. So, there are only a few possible routes that they would have taken.
Most scholars believe they probably looped north around Cornwallis Island and then sailed south between Prince of Wales Island and Somerset Island until they reached King William Island (route marked with red line in Figure 9). Some other possible routes have been considered, e.g., Hickey et al., 1993 (Abstract; Google Scholar access) have suggested that after they reached Lancaster Sound, they headed west until they passed Prince of Wales Island, before heading south to King William Island. Hickey et al., 1993’s proposed alternative route is marked in light blue/cyan on the above map.

Still, whatever route they took, from the satellite estimates, it seems unlikely they would have gotten as far as they did, if they had attempted their voyage in 1979. See here and here for more on Franklin’s last voyage.

Return to voyage list

Roald Amundsen’s Northwest Passage Expedition, 1903-1906

Figure 10. Route of Roald Amundsen's Northwest Passage Expedition (1903-1906). White areas represent Arctic ice extent in September 1979. Click to enlarge.

Despite the many attempts of the 19th century British explorers, the first successful, documented voyage through the Northwest Passage didn’t occur until the 20th century, with Roald Amundsen’s 1903-1906 expedition. Amundsen was a Norwegian explorer, who later (1910-1912) led the first expedition to reach the South Pole, and beat by 33 days a rival team of British explorers, led by Robert Scott (Scott’s team tragically died on the way back from the pole, and the scientific observatory at the South Pole is named the Amundsen-Scott Station in honour of both groups).
For his Northwest Passage Expedition, Amundsen left Oslo, Norway on 16 June 1903 in a small fishing boat called the Gjøa with a crew of 6. They travelled via Baffin Bay, Lancaster Sound, Peel Sound, James Ross Strait, Simpson Strait and Rae Strait before having to stop to overwinter at the south of King William Island. In 1904, they travelled to the North Magnetic Pole before returning to King William Island. In the summer of 1905, they sailed through Queen Maud Gulf and continued northwest, until they became trapped in ice near Herschel Island. They completed the voyage the following year, when they reached Nome, Alaska, in September 1906. See here and here.

As can be seen from the map above, much of the route taken by Amundsen and his crew in their 1903-06 expedition was beyond the 1979 satellite sea ice extent.

Return to voyage list

St. Roch’s 1940-42 and 1944 voyages

Figure 11. Routes taken by St. Roch on its 1940 (red line) and 1944 (blue line) voyages. White areas represent Arctic ice extent in September 1979. Click to enlarge.

In 1940, under the command of Henry Larsen of the Royal Canadian Mounted Police (RCMP), the St. Roch was given the task of demonstrating Canadian sovereignty in the Arctic, by proving they were able to travel through the Northwest Passage.
In June 1940, it left Vancouver in British Columbia, Canada, and two years later, after making several stops, they reached the other side of Canada, docking in Halifax, Nova Scotia on 11th October 1942. They followed a route similar to the one taken by Amundsen, but in the opposite direction. By doing this, they became the first ship to travel the Northwest Passage from the Pacific to the Atlantic, i.e., from west to east.

Two years later, they received word that they were to attempt the return voyage (east to west) in a more direct manner. They left Halifax on July 22nd 1944, and sailed through the Barrow Strait in a similar route to Parry’s 1819-20 voyage. However, unlike Parry, they weren’t completely stopped by the ice at Melville Island, and were able to continue on through, reaching Vancouver on October 16th – only 86 days after leaving Halifax.

For more details, see here, here, here and here. Also, Larsen provided his account of their voyages in Larsen, 1947 (Abstract).

Return to voyage list

The Northeast Passage (Russian Arctic)
While much of the interest in Arctic exploration lay in discovering the Northwest Passage, north of Canada, there is also another possible route between Europe and Asia – sailing along the northern coast of Europe and Russia. This possible route is referred to as the “Northeast Passage”, and also held a lot of interest.

Return to voyage list

S/S Vega’s Eurasian circumnavigation, 1878-79

Figure 12. The part of the route through the Arctic taken by the S/S Vega on their 1878-1879 voyage around the entire Euroasian continent. White areas represent Arctic ice extent in September 1979. Click to enlarge.

In 1878, Nils Adolf Erik Nordenskiöld led the Swedish steamship, S/S Vega on an expedition to circumnavigate the entire Eurasian continent. They succeeded, and became the first vessel to do so. But, significantly for our discussion, by doing so, they also became the first ship to complete a documented voyage through the Northeast Passage. As can be seen from Figure 12, this is something they probably would have been unable to do in 1979.
In July 1878, the Vega left Göteborg, Sweden and headed northwest around Norway, before starting their eastward journey. Their voyage was relatively straightforward and they had passed the critical Cape Chelyuskin by 19th August. Everything continued to go smoothly, and they had nearly reached the Bering Straits by late September. However, on 28th September, just about one day’s sailing from open water (200km from the Bering Straits), they were blocked by ice. As a result they had to overwinter, and stay moored to the ice until 18th July 1879, when the ice finally freed. Two days later, they were in the Bering Sea, and able to continue their circumnavigation of Eurasia, which they completed on 24th April 1880. For more details, see here, here and McDonald, 1989.

Return to voyage list

SS Chelyuskin’s voyage, 1933-34

Figure 13. Route of the SS Chelyuskin's Northeast passage expedition (1933-34). White areas represent Arctic ice extent in September 1979. Click to enlarge.

From the early days of the Soviet Union, the development of the Northeast Passage as a “normally operating sea route” was a goal of the government, for both economic and nationalistic reasons. So, in 1932, an icebreaker steamer (the Aleksandr Sibiryakov) was sent along the Passage to prove that it was possible to travel it in one season, under the command of Captain Vladimir Voronin and the leadership of Otto Schmidt. Unfortunately, the Sibiryakov lost its propeller to heavy ice floes. But, nonetheless, it succeeded in reaching the Bering Strait.
So, the following year, it was decided to repeat the experiment, with another ship. The SS Chelyuskin wasn’t an icebreaker. Instead it was just a steamship which had been reinforced to navigate polar ice. But, it was decided to attempt the voyage, anyway. Again under the command of Otto Schmidt and V. Voronin, it left Murmansk in August 1933. Although it had to call upon icebreakers at a few points along the voyage, it managed to reach the mouth of the Bering Strait by September. However, it then became trapped in an expanding icefield. Once trapped, it drifted in ice pack before finally sinking near Kolyuchin Island (in the Chukchi Sea) on 13 February 1934. Even though it sank, the USSR considered the voyage a success, as all but one of the passengers survived and it had proven that a regular steamship had a chance to navigate the whole Northern Maritime Route in a single season. The wreck itself wasn’t located until 2006, however.

The Chelyuskin voyage doesn’t seem to have been a simple voyage, and they had a number of challenging encounters with sea ice, twice getting caught up with drift ice. But, from the map above, it seems that in 1979, sea ice conditions were probably more severe.

For more details, see here and here (in Russian), as well as Barr, 2007a (Abstract) and Barr, 2007b (Abstract).

Return to voyage list

Nansen’s Fram expedition, 1893-96

Figure 14. Route taken by Nansen's crew on the Fram in their 1893-1895 mission to get close to the North Pole. White areas represent Arctic ice extent in September 1979. Click to enlarge.

Another mission that excited many Arctic explorers was the possibility of physically reaching the North Pole. In July 1893, Fridtjof Nansen led an unusual expedition on the Fram to try and reach the North Pole by deliberately sailing into pack ice, as far north as possible and letting the ship get carried north by drift ice!
By 20th September, they had reached pack ice, but his plan that the ice would continue drifting north failed, and the Fram remained stuck in the ice for more than a year. Believing that the Fram would eventually get carried back home by the drift ice, without reaching the pole, in February 1895, Nansen decided to physically leave the ship with a crewman (Hjalmar Johansen) and continue his expedition with dogs and a sled. They only reached as far as 86°13.6’N, but this was further north than any of his predecessors, so the expedition was a partial success. More importantly, in the context of this post, from the map above, the Fram seems to have managed to get further north in 1893, than he would have if if he had made his voyage in 1979, before getting stuck in the ice.

For more details, see here, here and here.

Return to voyage list

Dezhnyov’s voyage, 1648

Figure 15. Probable route taken by Selmyon Dezhnev in 1648. White areas represent Arctic ice extent in September 1979. Click to enlarge.

In the 1640s, Russians began hearing of a river in Siberia which flowed into the Arctic and was rich in sable fur, walrus ivory and silver ore. In 1646, one group tried to reach this river, but failed. The next year, Fedot Alekseyev, who was working for a Moscow merchant, organized another expedition. Alekseyev asked Semyon Dezhnyov to join in, because he was a government official. They managed to find the river (Kolyma river), and sailed all the way to the Arctic, but couldn’t get through what is now known as the Bering Strait, because of thick drift ice. They had to turn back.
But, the next year, they tried again. Alekseyev, Dezhnyov and others headed off in June 1648 in a fleet of seven koches. (Koches were a type of Russian sailing ship designed for travelling in Arctic waters.) They soon reached the Arctic, and headed east towards the Bering Strait. However, along the way several of the koches were lost. By September, they had rounded a “great rocky projection”, which was probably the Chukchi Peninsula which is the Russian side of the Bering Straits. But, by then they were down to two koches. Soon after they passed through the Straits, a storm blew up and the koches became separated. Dezhnyov’s koch eventually was wrecked south of the Anadyr, but Dezhnyov and 25 of the crew managed to make it to land.

All in all, the expedition seems to have been fairly disastrous. But, significantly, Dezhnyov’s koch succeeded in travelling from the Kolyma river all the way through the Bering Straits. From the map above, he probably wouldn’t have been able to do that if the ice extent was similar to 1979 conditions.

For more details, see here and here.

Return to voyage list


5. Conclusions
It does seem that “since records began”, the Arctic sea ice extent has been gradually, but continuously decreasing. It is true that this is consistent with the idea that there has been continuous global warming, although it is complicated by the fact that the Antarctic sea ice extent still seems to be about the same, i.e., the “global” warming only seems to have affected the northern polar region, not the southern polar region.

However, the problem is that these records only began in October 1978! Fortunately, there are several weather stations from the Arctic region whose records stretch back further. These suggest that the sea ice records coincidentally began just after several decades of cooling in the Arctic had ended! So, if the sea ice records had actually started earlier, they probably would have shown an increasing trend.

Anecdotally, this seems to be confirmed by the fact that many of the early Arctic explorers (early 20th century, 19th century and earlier) were able to reach areas that they probably couldn’t have reached in 1979, when the sea ice records began.

To summarise, the recent decline in Arctic sea ice doesn’t seem to be unusual, or related to human activity. Instead, it seems to be a natural occurrence. The polar bears can breathe a sigh of relief – now, they just need to worry about humans hunting them…

I admit I have not read all the material here but doesn't the idea of Urbanization Bias with regards to insulated runways, in the arctic no less, sound like total hogwash? While I can see if your weather station is in the core of a major metropolis that is covered by pavement and traps heat with skyscrapers then sure, the idea of skewed figures has some merit. But I would think most monitoring stations are not sitting in the downtown core, regardless, I don't see how some insulation of the runways is going to affect much at the station which is surrounded by no other pavement, concrete buildings etc. It's just ice and snow out there, with the snow doing a pretty good job of reflecting sunlight as opposed to absorbing it. I don't see how bias could enter into the picture with their records. That sounds like a "swamp gas" explanation or someone trying to force data to do what they want it to do, or in this case, rejct the data because of an invented explanation. That constant manipulation of the data has been a problem cited all over the CC discussion by all parties involve, at least as explained by some parties I don't see the Connolly's doing any different. It's all just a different kind of bias.

Here's the living quarters at the Isaachshen weather station from the late 70's - now defunct. But this is about as urban as the great white north gets.

Last edited:
The paper was on ice trends.

This is urbanisation bias.



In this essay, we summarise the results of our three “Urbanization bias” papers, which we have submitted for peer review at the Open Peer Review Journal.

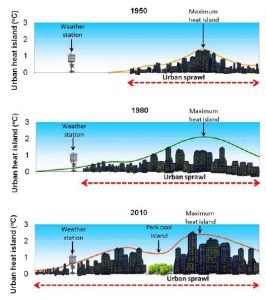

Urban areas are known to be warmer than rural areas. This is known as the “urban heat island” effect.

This is a problem for analysing global temperature trends, because the widespread urbanization since the 19th century has introduced an artificial warming “urbanization bias” into many of the weather station records around the world. As a result, much of the “unusual global warming since the Industrial Revolution” which has been reported is just an artefact of urbanization bias.

Several groups have claimed that urbanization bias has already been taken into account in the global temperature estimates, and that they’re sure the unusual global warming is due to man-made global warming. However, in our three papers, we show that those claims are invalid.

Urbanization bias has seriously biased the current global temperature trend estimates. When we properly account for this bias, it turns out that it was probably just as warm in the 1930s and 1940s!



1. Introduction
The main basis for the claim that there has been “unusual” global warming since the Industrial Revolution arises from the various global temperature estimates constructed from weather station records. Currently there are 5 groups publishing such estimates:

  1. NASA Goddard Institute for Space Studies (New York City, USA)
  2. Climate Research Unit, University of East Anglia (East Anglia, UK).
  3. NOAA National Climatic Data Center (North Carolina, USA)
  4. Tokyo Climate Center, Japan Meteorological Agency (Tokyo, Japan)
  5. Berkeley Earth (California, USA)
A sixth group (originally based in Russia, but now based in USA) also updated their analysis in 2006 – see Lugina et al., 2006, Carbon Dioxide Information Analysis Center (Tennessee, USA).


Figure 1. Comparison between the various weather station-based global temperature estimates, relative to 1961-1990. The solid black line represents the smoothed mean of all estimates.
All estimates imply that there has been an almost continuous ‘global warming’ since 1880. Many people have blamed this on the increase in CO2 concentrations since the Industrial Revolution. However, this period has also seen a dramatic increase in urban population (bottom panel). So, much of the apparent ‘global warming’ might just be urbanization bias. Click on image to enlarge.

As can be seen from Figure 1, all of these global temperature estimates give pretty much the same result. Since the start of each estimate (usually 1880), they all suggest that global temperatures have been fairly steadily increasing by about 0.8°C/century.

Atmospheric carbon dioxide (CO2) concentrations have also been steadily rising since the late 19th century, and man-made global warming theory predicts that increasing carbon dioxide should cause “man-made global warming”. For this reason, many supporters of the theory assume that this apparent “global warming” is the “man-made global warming” their theory had predicted.

This has convinced many people that:

  1. The man-made global warming theory must be correct
  2. The weather station-based global warming estimates must be accurate
However, as we will discuss in this essay, many of the weather station records used for these estimates of global warming contain artificial warming biases, which are not representative of actual global temperatures.

The problem is that most weather station records are not kept for monitoring long term temperature trends. Instead, they are usually used for making more accurate weather forecasts, making farming decisions, helping air traffic control, and other similar short-term decisions.

A consequence of this is that the long-term records contain a lot of “non-climatic biases”. These are temperature changes which are not climatic, but are due to local changes in the station and its environment over the decades and centuries.

For example, if a station is re-located, a new type of thermometer is introduced, or new buildings are built to accommodate the staff, this could alter the temperature of the air in the immediate vicinity of the thermometer. If these local changes are not taken into account when the long-term temperature record is being analysed, this would mistakenly leave the impression that the climate itself had changed. In reality, it is only a change in the measured temperature, not a change in the actual climatic temperature.

This means that the temperature trends in any weather station record are a combination of:

  1. Actual climatic trends for the region
  2. Non-climatic biases
One of the biggest problems in accurately calculating “global temperature” trends from weather records is in separating the two, and only including the actual climatic trends.

This is not easy. In fact, it is very challenging, e.g., see Mitchell, 1953 (Open access).

Our analysis shows that the 6 groups we mentioned above that have being calculating the “global warming” trends didn’t do a good enough job in accounting for these biases. They seem to have severely underestimated just how tricky a job it actually is.

Chief amongst these non-climatic biases is urbanization bias, and this is the focus of this essay.

On this website, we usually use the U.K. spelling for most words instead of the U.S. spelling, but most of the literature on urban heat islands uses the U.S. spelling, e.g., “urbanization” instead of “urbanisation”. So, in our papers and in this essay, we use the U.S. spelling for urbanization.
In general, urban areas tend to be warmer than rural areas. If you are a car owner and have a thermometer in your car, you may have noticed this, i.e., the temperature generally rises when you drive into an urban area and decreases when you leave an urban area.

As a result of this extra urban warmth, if a weather station becomes urbanized, this introduces an artificial warming bias into the station’s record, i.e., urbanization bias.

If a substantial fraction of all the weather stations from around the world have been affected by urbanization bias, then this could have introduced an artificial warming trend into the “global temperature trend” estimates. That would mean that some (or even all!) of the alleged “unusual global warming” since the Industrial Revolution is just an artefact of urbanization bias!

With this in mind, we decided it was to important to carefully investigate the urbanization bias problem, and check if it had been adequately dealt with. We have written a series of three companion papers describing the results of our investigation, and have submitted them for peer review on the Open Peer Review Journal forum we founded:

  1. Urbanization bias I. Is it a negligible problem for global temperature estimates? – Ronan Connolly & Michael Connolly, 2014a
  2. Urbanization bias II. An assessment of the NASA GISS urbanization adjustment method – Ronan Connolly & Michael Connolly, 2014b
  3. Urbanization bias III. Estimating the extent of bias in the Historical Climatology Network datasets – Ronan Connolly & Michael Connolly, 2014c
Interested readers are welcome to read our three papers for a detailed assessment of the urbanization bias problem. However, each of the papers is quite long and technical, and so we have written this essay to provide a general overview of our main findings and conclusions.

In a nutshell, we found that urbanization bias has seriously affected the various global temperature trend estimates. It seems that most of the “unusual global warming” that we have heard so much about had absolutely nothing to do with our carbon footprint, but was just a consequence of urbanization bias!

The various attempts that have so far been made to deal with the urbanization bias problem have been woefully inadequate. In many cases, they actually seem to have made the problem even worse. The popular belief that the problem has been “dealt with” (e.g., here, here, here, here, here, or here) just seems to be down to wishful thinking…

However, before we can discuss our findings, let us first consider in a bit more detail exactly what the urbanization bias problem is…


2. What is the urban heat island problem?
Even in the early 19th century, it was already noticed that city temperatures were artificially warmer than the surrounding countryside:

…the temperature of the city is not to be considered as that of the climate; it partakes too much of an artificial warmth, induced by its structure, by a crowded population, and the consumption of great quantities of fuel in fires - Luke Howard, p. 2, Climate of London, 2nd Ed. (1833)


Figure 2. Schematic representation of a typical urban heat island. Taken from the Urban Heat Islands website. Original source: EPA, 2008. Click on image to enlarge.

This phenomenon is known as the “Urban Heat Island” effect (often abbreviated to “UHI effect”). The word “island” is used because it is a localised effect which decreases as you leave the urbanized areas. This is schematically illustrated in Figure 2.

The exact amount of this extra urban warmth varies from town to town, from day to night, and from season to season. However, in general, the more urbanized the town is, the more warmth there tends to be.

Below is a 1 minute summary of the phenomenon by The Weather Channel:

Urban heat islands can cause serious problems for city dwellers during the summer, particularly in tropical and subtropical countries, e.g., India, since they increase the frequency and strength of heatwaves in the city. This is likely to become an even greater problem in the future as urban areas continue to expand and the number of people living in cities increases.

As a result, there is a lot of ongoing research into developing new construction techniques and urban planning schemes to try and reduce the rate at which these urban heat islands grow (“urban heat island mitigation”), e.g., see Rizwan et al., 2008 (Abstract; Google Scholar access) for a review.

For instance, in the following 2 minute clip, two researchers from the Heat Island Group at the Lawrence Berkeley National Laboratory (California, USA) discuss different types of materials which could be used for making pavements and car parks:

Aside from the problems urban heat islands can cause for city-dwellers, they also create an insidious problem for researchers who want to use weather station records to estimate global temperature trends.

This is because many of the world’s weather stations are currently in urbanized areas, but in the late 19th/early 20th centuries, these areas were rural (or at least less urbanized). As the areas around the weather stations became urbanized, this would have introduced an urban heat island at the station.


Figure 3. Schematic illustration of how an expanding urban heat island influences an urban station. Click to enlarge.

As the urbanization continued, the size of this heat island would have increased. This would have introduced an artificial warming trend into the weather station’s record, i.e., it would introduce an “urbanization bias”.

We illustrate this schematically in Figure 3. Let us consider a hypothetical weather station which has stayed in the same location since 1950, but has gradually become surrounded by urban sprawl. As the nearby city expanded over the decades, its urban heat island would have become bigger.

Initially, our hypothetical station might have been too far away to be affected (1950). However, as the urban sprawl expands, eventually the weather station begins to be affected by the expanding urban heat island (1950-1980). Soon, the weather station itself becomes urbanized (1980-2010).

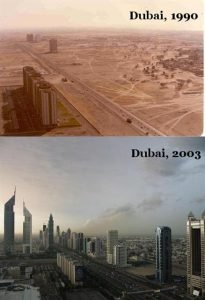

Figure 4. The same street in Dubai, United Arab Emirates in 1990 and 2003. Photos from Farhad Abdolian’s blog. Click on image to enlarge.

Over the last century or so, urban areas have been dramatically growing across the world. Not only have previously rural areas been turned into urban areas (e.g., Figures 4), but smaller cities have grown into major urban metropolises (e.g., Figures 5).

At the moment, only about 1% of the world’s land surface is urbanized. So, this urbanization has probably not had much effect on actual global temperatures, e.g., Jacobsen & Ten Hoeve, 2012 (Abstract; Google Scholar access). However, as we will discuss in this essay, a surprisingly large number of the weather stations used for calculating global temperature trends are in these urbanized areas.

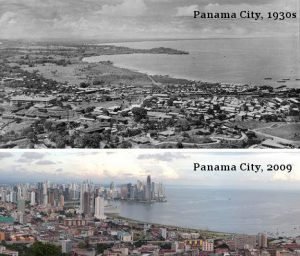

Figure 5. Panama City, Panama – 1930s and 2009. Photos via Weburbanist.com. Click on image to enlarge.

This means that the calculated global temperature trends are showing a lot more warming than the actual global temperature trends.

In effect, urbanization bias has introduced an artificial “global warming” bias into the calculated global temperature trends. This has nothing to do with our carbon footprint. Indeed, there are some suggestions that urban areas actually have a lower carbon footprint than rural areas, e.g., Glaeser & Kahn, 2010 (Abstract; Google Scholar access), although the data is quite ambiguous, e.g., Heinonen & Junnila, 2011 (Open access).

So, the people who have been blaming the recent “unusual global warming” on man-made global warming from increased carbon dioxide concentrations could easily have been mistaken.

Urbanization bias in urban stations

Figure 6. Average annual temperatures recorded at the Buenos Aires weather station. Click on image to enlarge.

We can see from Figure 6, that the Buenos Aires station record implies that there has been a very strong warming trend since the early 20th century. The annual mean temperature was only 16°C at the start of the 20th century, but 18°C at the end. That’s an increase of about 2°C/century!

However, Buenos Aires (Argentina) is currently one of the most urbanized cities in the world. It underwent a rapid population growth over the 20th century, e.g., in 1914, the metropolitan area already had a population of 1.7 million, but by 2001 this had increased to 12.7 million! See here. So, it is quite likely to have been affected by urbanization bias. Indeed, Figuerola & Mazzeo, 1998 (Open access) have shown that Buenos Aires currently has a strong urban heat island, and presumably this was much smaller at the start of the 20th century.

Therefore, much of the strong “warming” trend implied by the Buenos Aires record is probably just urbanization bias. But, how much? Is it half of the trend? Is it all of the trend?

It’s actually really tricky to know for certain, because we don’t know exactly how the urban heat island at the station has developed over the century. We know it was there in 1998, because of Figuerola & Mazzeo, 1998’s study. But, when did it start affecting the station? Was there already an urban heat island at the station when it was set up in the 19th century, or did it only start developing in the 20th century?

What we can say for certain is that including the Buenos Aires record in the global temperature estimates will introduce at least some urbanization bias into the temperature estimates for Argentina.


Figure 7. Photograph taken flying into Base Aeronaval Punta Indio. Via Panoramio.com, by Martin Otero. Click on image to enlarge.

You’re probably wondering, “Why don’t we just look at those stations that are rural?”
The nearest rural station to the Buenos Aires station is Punta Indio (ID=30187596000). This station is located at the Base Aeronaval Punta Indio, which is in a rural part of Argentina (35°21’S, 57°18’W), 140km from the Buenos Aires weather station.

From looking at the location using Google Earth, this does seem to be a fairly rural location (Figure 7). The nearest town, Verónica is nearly 5km away, and is quite a small town (pop. 5,772 according to Wikipedia).

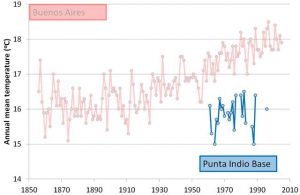

Figure 8. Comparison of temperature trends of the rural, Punta Indio Base weather station to the Buenos Aires weather station. Click on image to enlarge.

So, this seems like a perfect station to compare to the Buenos Aires station, except for one problem… It only has 23 years of data (Figure 8), spread over a fairly short period, i.e., the 1950s-1990s.

While the Buenos Aires station record continued to show warming during those 23 years, the Punta Indio station record didn’t! This suggests that the “warming” in the Buenos Aires record during those years was just urbanization bias.

Interestingly, the average temperature at the Punta Indio station was only about 16°C, i.e., the 19th century temperatures for Buenos Aires! Could that mean that all of the warming trend in the Buenos Aires record was urbanization bias? Maybe… or maybe not… Maybe the Punta Indio station is just located in a much colder spot.

We really can’t say for sure, because the Punta Indio record is too short. The only stations in the area with relatively long records are urban.

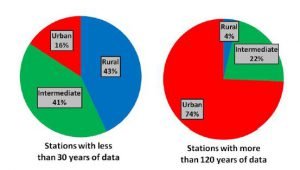

Figure 9. The relative urbanization of stations with very short records (less than 30 years) or very long records (greater than 120 years). Click on image to enlarge.

This is one of the main challenges with the urban heat island problem – it is harder to keep enough staff to maintain a continuous temperature record at an isolated rural location for a century (or longer) than in the heart of a thriving metropolis.

This means that most of the available rural records are fairly short (a few decades), and most of the stations with records of a century or longer are in urban areas. We can see from Figure 9 that quite a large fraction of the stations with records with less than 30 years are rural (43%), but only 4% of the stations with more than 120 years are.

Most of the stations that are being used for calculating the long-term temperature trends are urban!

Not just a problem for urban areas

Figure 10. Even small isolated towns in the Arctic, such as Barrow, Alaska (USA) have been affected by urbanization bias. Aerial photograph downloaded from Wikimedia Commons. Click on image to enlarge.

Even in relatively isolated places, such as Barrow, Alaska (USA), urbanization bias is a problem. Barrow is at the northern tip of Alaska, high up in the Arctic. It is so isolated and far north that it was used as the setting for the 2007 vampire horror movie, 30 Days of Night. However, although the NOAA ESRL Global Monitoring Division maintain a weather station that is located out in the open tundra, 7.5 km northeast from the town (at 71.3230°N, 156.6114°W), this weather station was only established in 1973.

For Barrow’s long term weather record, we have to instead rely on the National Weather Service (NWS) weather station which is located in the middle of the town. It was originally at the NWS office on 1018 Kiogak St. (at 71.3230°N, 156.6114°W), although it recently seems to have been moved to the nearby Wiley Post-Will Rogers Memorial Airport.

This NWS weather record for Barrow has data stretching back to 1901, making it one of the longest weather records available for the Arctic. However, the village of Barrow has also expanded a bit since 1901. In 1900, it had a population of 300, but this had increased to 4,600 by 2000. While this might not seem like much compared to a major metropolis like Buenos Aires, the heavy energy usage of the residents during the bitter Arctic winter has been shown to cause a relatively strong urban heat island in the town.

Hinkel et al., 2003 (Open access) have shown that during the winter, the town is on average 2.2°C warmer than out on the tundra. This urban heat island has benefits for the residents, e.g., it has led to a 9% reduction in the number of freezing degree days and earlier snowmelt in the town. But, the development of the urban heat island would have also introduced a gradual warming bias into the NWS weather record.


Figure 11. Comparison between temperature trends for two of the longest weather station records for the Arctic. Click on image to enlarge.

In other words, urbanization bias is even a problem in the Arctic. Figure 11 compares the Barrow weather record to another Arctic station, Sodankylä, Finland. [If you have read our essay on Arctic sea ice, you might recognise this figure from there].

Although Finland is on the European side of the Arctic, it is one of only six Arctic stations with data for more than 75 of the last 80 years, and it is the only one of those six stations that is not associated with some form of urbanization.

Both stations show:

  • Warming in the early 20th century, up to the 1930s
  • Cooling from the 1930s to the 1970s
  • Warming from the 1970s to the 2000s
However, in the rural Sodankylä record, the recent 1970s-2000s warming is much less pronounced than in the Barrow record, and it was just as warm in the 1930s as it is today. This suggests that urbanization bias in the Barrow record has made the 1970s-2000s warming seem much more unusual than it actually was.

The effects of urbanization bias on global temperature estimates
One rare region which has a large number of rural stations with relatively long and complete records is the U.S.

In 1890, the U.S. National Weather Service created a Cooperative Observer Program (COOP) which encouraged volunteer weather enthusiasts to keep weather records at stations (rural and urban) across all of the United States. By using the data from this program, the National Climatic Data Center were able to create a high density dataset containing a large number of fairly long and complete records from all across the “contiguous United States” (i.e., all the states except Hawaii and Alaska). This dataset is called the U.S. Historical Climatology Network (USHCN) and contains a large number of rural records with a century or more of data.

We discuss this U.S. dataset in more detail in Paper 3. However, for now, it is sufficient to note that almost all of the station records in this dataset are fairly long and complete (urban and rural). Also, there are several rural and urban stations located in each of the U.S. states.


Figure 12. Average temperature trends for continental U.S. according to rural stations (top) and urban stations (bottom). Click on image to enlarge.

Of the 1218 stations in the U.S. Historical Climatology Network, about 23% of them are very rural and about 9% of them are highly urbanized. This gives us a relatively large set of stations which are similar enough that we can compare the temperature trends of rural and urban stations.

Figure 12 compares the average U.S. temperature trends when calculated using just the most rural stations to the trends calculated using the most urban stations.

Like the two Arctic stations in Figure 11, both subsets show similar trends:

  • Warming from the 1890s up to the 1930s
  • Cooling from the 1930s to the 1970s
  • Warming from the 1970s to the 2000s
However, again, the urban stations also show an underlying warming trend, which substantially changes the context of the trends.

For the rural subset, the cooling periods are of roughly the same magnitude as the warming periods. In other words, they imply an almost cyclical “warming/cooling” pattern. The recent warm period doesn’t seem at all unusual. If anything, it seems to have been warmer in the 1930s! Indeed, the 1930s was a period of severe drought for the U.S., known as the “Dust Bowl era”.

For the urban subset, there was less cooling during the 1930s-1970s cooling period… and more warming during the 1970s-2000s warming period. This makes the recent warm period seem much hotter than the earlier warm period. Indeed, in early 2013, there were a number of claims that 2012 was the “hottest year on record for continental U.S.” (National Geographic).

The plots in Figure 12 are slightly smoothed (using 11-point binomial smoothing) to highlight the differences between the two subsets, but if you’re interested, the non-smoothed plots can be seen in Figure 8 of Paper 3.We used the unadjusted version of the USHCN dataset for generating these plots. The National Climatic Data Center also provide versions which have been adjusted (“homogenized”) in an attempt to account for various non-climatic biases. We will briefly discuss some of these adjustments in Section 6, but for a detailed discussion, we recommend you read Paper 3.

Figure 13. Estimate of the average urbanization bias in the urban U.S. stations (top) compared to the total urban population in the U.S. Click on image to enlarge.

Figure 13 shows the difference between the two subsets. We can see that the temperature trends for the two subsets have been steadily diverging at a rate of about 0.7°C/century. This divergence seems to correlate fairly well with the urban population growth for the U.S. (bottom panel). This suggests that the divergence is mostly due to urbanization bias.

It seems that urbanization bias has introduced a regional warming of about 0.7°C/century into the urban stations of the U.S. Historical Climatology Network. To put this in context, the “unusual global warming” implied by the global temperature trends in Figure 1 has been about 0.8°C/century.

3. Isn’t there other evidence for global warming?
At this stage, you are probably thinking “…but, it’s not just the weather record analysis – there’s loads of other evidence for global warming – the Arctic sea ice is melting, the oceans are heating up, sea levels are rising, etc.” You’re right – there is plenty of evidence that there has been some global warming in recent decades. But, is this the same as evidence of man-made global warming, or even evidence of unusual global warming?

We saw from Figures 11 and 12 that both urban and rural stations agree that there was warming during the 1980s-2000s period. However, this followed an earlier period of cooling during the 1940s-1970s.

If the rural trends of Figures 11 and 12 are representative of global trends, then this indicates that the 1980s-2000s “global warming” was balanced by a similar period of “global cooling” in the decades before that. In other words, it was at least as warm in the 1930s and 1940s as it is today!

If the 1980s-2000s global warming was due to man-made global warming from our fossil fuel usage, then it should be much warmer today than it was in the 1930s, because carbon dioxide concentrations were much lower then. However, this didn’t occur for the rural stations in Figures 13 and 14! It is only for the urban stations that the recent warm period seems “unusually warm”.

Obviously, there is less and less data the further back in time we consider. But, the limited rural station data that is available suggests that the 1940s-1970s global cooling and 1980s-2000s global warming are not at all unusual. There seems to have been a period of global warming during the 1910s-1940s, and before that, a period of global cooling during the late 19th century.

As we will discuss later, most of the weather stations with records stretching back to the late-19th century (or earlier) are urban stations. So, we can’t use them for directly comparing 19th century temperatures to current temperatures. In addition, the longest station records are mostly confined to Europe (and North America), so they don’t tell us about “global” temperature trends.

Nonetheless, the longer records suggest that similar periods of cooling and periods of warming also occurred in the 18th and 19th centuries.


Figure 14. The Modern Parents comic strip from Viz Magazine by John Fardell, downloaded via the Not A Lot Of People Know That blog. Click on image to enlarge.

It seems that the Earth’s climate varies between periods of natural global warming and natural global cooling, regardless of what us humans are doing…

For this reason, before we can claim that a particular “global warming” period is “unusual” or “man-made”, we need to have enough data to compare it to other periods.

We are being continually told that there are lots of different indicators which provide evidence for “global warming” or “climate change”, and scientists aren’t just relying on the weather stations, e.g., here, here, here, or here. However, when you look carefully at each of these indicators individually, you find that none of them actually prove that this “global warming” is either “unusual” or “man-made”!

You probably are finding this hard to believe, so let’s look at this so-called evidence…

Most of the “global warming indicators” cover too short a time period
The first problem is that most of the indicators have records that are too short to compare the recent warm period to the earlier warm periods, i.e., they don’t start until after the 1930s-1940s warm period.

The various measurements described in the table below have all been used to claim that there has been unusual global warming. However, if you check the column showing when these measurements start you can see that none of them are long enough to actually justify such a claim:

“Global warming indicator” Typical study Start of analysis
Satellite measurements of Greenland and Antarctic ice sheets Velicogna, 2009 (Abstract; Google Scholar access) 2003
Northern Hemisphere permafrost Romanovsky et al., 2010 (Open access) 1999
Satellite estimates of upper air temperature trends Christy et al., 2010 (Open access) 1979
Satellite estimates of Arctic sea ice extent Comiso et al., 2008 (Abstract; Google Scholar access) 1979
Onset of “spring” inferred from plant and animal life cycles (“phenological studies”) Rosenzweig et al., 2008 (Abstract; Google Scholar access) 1970s/1980s
Northern Hemisphere snow cover Déry & Brown, 2007 (Abstract; Google Scholar access) 1967
Weather balloon estimates of upper air temperature trends Thorne et al., 2005 (Abstract; Google Scholar access) 1958
Mass balance records for glaciers Dyurgerov & Meier, 2000 (Open access) 1950s/1960s
Ocean heat content Palmer et al., 2010 (Open access) 1955
It is certainly true that all of the above studies agree that there has been some global warming in the past few decades (1980s-2000s). But, none of them actually covered a long enough time period to compare the recent warm period to the earlier warm periods, such as the 1930s-1940s warm period. Basically, all they tell us is that the 1990s/2000s were warmer than the 1950s/1960s. That doesn’t tell us whether the recent warm period is “unusual” or not, does it? Sure, you could just as easily say that the 1950s/1960s were “unusually cold”!

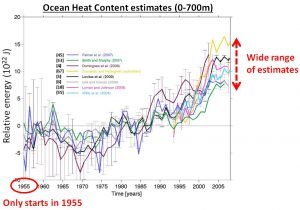

Figure 15. Comparison of the various different estimates of ocean heat content trends. Adapted from Figure 2 of Palmer et al., 2010 (Open access). Click on image to enlarge.

Not only that, but most of these indicators are only useful for making a qualitative comparison. We can use them to say that one decade is roughly warmer or cooler than another decade, but we don’t know by exactly how much. Indeed, the data is often quite ambiguous, and different researchers will disagree on the exact magnitude of the trends.

For instance, Figure 15 compares the various different estimates of ocean heat content trends. All of the estimates agree that the 1990s-2000s were warmer than the 1960s-1970s, but they disagree on how much.

This is relevant for the urban heat island problem, because we have the same problem when comparing the urban stations to rural stations. As we discussed above, the rural stations also agree with the urban stations that the 1990s-2000s were warmer than the 1960s-1970s, but disagree over how much. The urban stations imply that the 1990s-2000s were the warmest decades on record, but the rural stations imply that it was just as warm in the 1930s!

So, a global warming indicator which only tells us that there has been some global warming since the 1950s isn’t good enough! Unfortunately, that rules out almost all of the indicators we’ve heard so much about.

The remaining global warming indicators have their own problems
At this stage, you’re probably thinking, “That can’t be right! Surely, there’s got to be some other global warming indicator that shows a long-term global warming trend…” Remarkably, aside from the weather station record estimates, almost all of the so-called “global warming indicators” are short-term estimates…


Figure 16. It is only since about the 1950s that technology was beginning to advance enough for scientists to start setting up large-scale global climate monitoring networks. Photograph of a 1950s computer downloaded from Michigan (USA)’s Department of Natural Resources website. Click on image to enlarge.

While this is initially surprising, it does make sense when we realise that it is only in the last few decades that scientists have begun building up a proper climate monitoring network. Many of the climate monitoring programmes only began during the International Geophysical Year in 1957/58. Other programmes didn’t begin until the advent of the “satellite era” (1960s/70s).

Advances in technology have continued since then, and as a result many of our most reliable climate monitoring networks have only been in place since the 1990s and 2000s. Indeed, most of the improvements in our climate monitoring abilities occurred after the public interest in “global warming” began in the late 1980s, i.e., when governments began increasing funding for climate research with multi-billion dollar research programmes such as the U.S. Global Change Research Program.

Having said that, there are some other studies and datasets which have been used to argue that there has a long-term global warming trend since the Industrial Revolution. Unfortunately, all of these studies and datasets have their own problems, and so the claims that these “prove” there has been unusual global warming need to be taken with a pinch of salt.

The problems with most of these studies/datasets have been discussed elsewhere on this website:

  • Some long tidal gauge records suggest that sea levels have been steadily rising since at least the 19th century. Some researchers claim that this is proof of “unusual global warming”. We disagree with this claim, as we discuss in our “What is happening to sea levels?” essay.
  • Some researchers claim that there has been an unusual increase since the early 20th century in the frequency and intensity of hurricanes, typhoons and other tropical storms. We dispute this claim in our “Is man-made global warming causing more hurricanes?” essay.
  • Some studies claim to have shown that the 20th century was the warmest in at least 1000 years, by combining together various different “temperature proxies” (tree rings, ice cores, lake sediments, etc.), e.g., Mann et al., 2008 (Open access). We discuss some of the problems with these “hockey stick studies” in our “Global temperature changes of the last millennium” paper, which we summarise here.
One other group of datasets which are worth some extra discussion are the Sea Surface Temperature (SST) estimates. Clearly, the ocean temperature measurements are unaffected by urbanization bias. Also, researchers started measuring ocean temperatures around the same time that they started setting up weather stations. So, initially, these estimates might seem to provide a useful comparison for the weather station records.

Indeed, many of the groups using weather station records for estimating global temperature trends, also combine their estimates with the sea surface temperature records to construct “land-and-sea” global temperature estimates.

What do we know about ocean temperature trends?

Figure 17. Total number of Sea Surface Temperature (SST) measurements available for the entire year 1955 (top) and 2012 (bottom). Downloaded from NOAA National Oceanographic Data Center. Click on image to enlarge.

In the mid-18th century, some researchers began recording measurements of the water temperature at the ocean’s surface while on scientific oceanic voyages. For instance, between 1769 and 1770, Benjamin Franklin measured the water temperatures during several Atlantic crossings, and used these measurements to publish the first map of the Gulf Stream.

These measurements are referred to as “Sea Surface Temperatures” (SST). Unlike the temperature record for a weather station, the ships on these voyages were continuously moving and the voyages only lasted a few weeks or months each. So, these early Sea Surface Temperature measurements didn’t provide a continuous record for any individual location.

However, ocean temperatures tend to be much more uniform than land temperatures. For this reason, a number of researchers have suggested that it should be possible to estimate the long term Sea Surface Temperature trends for a given area by averaging together all the available measurements from different voyages that went through that area in a given month.

For example, the Hadley Centre have done this for their HadSST3 dataset. By doing this, they claim to have found a long-term global warming trend since the mid-19th century that is similar to the weather-station based estimates. The apparent similarity between these two different estimates has convinced many people that both estimates are accurate and reliable.


Figure 18. Data sources available for Sea Surface Temperature measurements. Taken from Figure 7 of Woodruff et al., 2011 (Open access). Click on image to enlarge.

Unfortunately, there are major inconsistencies in the data sources used for constructing these Sea Surface Temperature estimates:

  • We can see from Figure 17 that the data coverage in 1955 was actually quite limited, especially for the southern hemisphere. This coverage was even worse in earlier years.
  • The exact shipping routes which contributed measurements varied from year to year, depending on a) which nations were involved; b) which ships (and captains) were involved; c) weather conditions; d) national and international territory agreements; etc.
  • As can be seen from Figure 18, the actual types of measurements have undergone major changes over the decades. For instance, in the 1960s, all measurements were ship-based, while since the 1990s, most measurements have been made by weather buoys. Several groups incorporate satellite measurements into their Sea Surface Temperature estimates, but again these are only available from 1978 onwards.
As a result, directly comparing the Sea Surface Temperature data from the early 20th century to the current Sea Surface Temperature data is like “comparing apples and oranges” – there have been too many changes in the data sources for such comparisons to have much meaning.

So, while it is true that there is some Sea Surface Temperature data which goes back to the 19th century, there are a lot of uncertainties about how to compare the earlier data to the modern data.

In the 1980s and 1990s, it was well known that the data sources up to about 1960 were far too different from the modern data sources for a direct comparison. Most researchers recognised that if you had to make such comparisons, you would have to apply adjustments to the data to account for these changes, and that it was very unclear what those adjustments should be:

In summary, the historical [Sea Surface Temperature] record … may well contain instrumental bias effects that render the data of questionable value in determining long period trends in ocean surface temperatures… Investigators that use the data [to try this] bear a heavy, perhaps impossible, responsibility for ensuring that the potential instrument bias has not contaminated their results. - Barnett, 1984 (Open access)

Nonetheless, some researchers tried to come up with adjustments to apply to the data to allow some sort of estimates of the long term trends. Two approaches were taken:

  1. Develop some theoretical corrections to apply whenever it was known exactly what changes in data sources had occurred.
  2. Develop adjustments to the Sea Surface Temperature data, so that it better matched the land-based weather records
There are major problems with the first approach. Most of the changes in data sources are unknown, because they were either undocumented, or the documentation is lost/unavailable. But, in addition, it is unclear what the theoretical corrections should be.

As a result, the second approach has been quite popular. Many researchers seem to have assumed that the weather station-based estimates are much more reliable and consistent than the Sea Surface Temperature estimates.

Of course, if the Sea Surface Temperature data was adjusted specifically so that it better matched the land station data, then you can’t then use that adjusted data to claim the land station data is reliable!!!

So, neither approach can be used for claiming that the land station data is “reliable”.

See Farmer et al., 1989 for a review at the time of the two approaches. Farmer et al., 1989 was a Technical Report called “Documenting and explaining recent global mean temperature changes” and is available on the Climate Research Unit’s website.
The Sea Surface Temperature data is undoubtedly an important data source. In recent years, the observation network has undergone significant improvements. For instance, in 2000, the Argo network of weather buoys began deployment.

However, the data for the earlier parts of the 20th century (or earlier) has to be treated very cautiously. It is probably even less reliable than the land station data, even when we consider that the land station data is affected by the urbanization bias problem.


4. Paper 1. Is urbanization bias a negligible problem?
Summary of Paper 1Several different studies have claimed that urbanization bias hasn’t significantly affected the global temperature estimates, and that the “unusual global warming” suggested by those estimates is man-made global warming due to our carbon footprint.
In Paper 1, we carefully revisited each of those studies, to check if their claims were justified. In all cases, we found that they weren’t!

It turns out that the authors of those studies had made basic errors in their analysis and/or hadn’t checked the data carefully enough.

The main justification offered by the groups who assume urbanization bias is negligible is that there have been a number of studies which have claimed to have proved that to be the case.

There have been 9 sets of studies which claim to have proved that urbanization bias is a negligible (or very minor) problem:

  1. Hansen & Lebedeff, 1987 (Abstract; Google Scholar access)
  2. Wigley & Jones, 1988 (Abstract; scanned version on Warwick Hughes’ blog)
  3. Jones et al., 1990 (Abstract; Google Scholar access)
  4. Easterling et al., 1997 (Abstract; Google Scholar access)
  5. Peterson et al., 1999 (Abstract; .pdf downloadable from DigitalCommons@UNL)
  6. Peterson, 2003 (Open access)
  7. Parker, 2004 (Abstract; Google Scholar access); Parker, 2006 (Open access)
  8. Wickham et al., 2013 (Open access)
  9. Hansen et al., 1999 (Abstract; Google Scholar access); Hansen et al., 2001 (Abstract; Google Scholar access); Hansen et al., 2010 (Abstract; Google Scholar access)
So, in our first “Urbanization bias” paper, we decided to check how these studies came to that conclusion.

Surprisingly, when we closely examined each of the studies in turn we found that none of them were justified in making their conclusion!

In many cases, we found that the authors of these studies had made basic logical, statistical or scientific errors in their analysis. In other cases, they failed to properly check if their analysis was even capable of identifying urbanization bias. Several of the studies made all of these mistakes.

A detailed discussion of the flaws in all 9 sets of studies would probably be too much for this essay, but we provide such a discussion in Paper 1. So, if you’re interested in these studies, we recommend you read Paper 1.

However, many of the studies suffered from the similar flaws, so it might be helpful to briefly discuss some of the flaws common to more than one study:

A. Use of overly simplistic “rural”/”urban” thresholds
Most of the studies relied on just one threshold for distinguishing “urban” and “rural” stations. They then arbitrarily divided their stations into two groups on this basis.

For instance, Hansen & Lebedeff, 1987 defined a station as being “urban” if it was associated with a town with a 1970s population of at least 100,000. Otherwise, it was considered “rural”. On the other hand, Peterson, 2003 assumed that a station was “urban” once the nightlight brightness in the area reached a certain value.

This is a very limited approach to studying urbanization bias. Urbanization bias is a gradual process, and varies from country to country, and region to region.

As a result, this “single threshold” approach is seriously flawed:

  • A weather station doesn’t suddenly switch from being “rural” to “urban” when the population increases from 99,999 to 100,000! Nor does having an extra few street lights on at night cause a sudden “rural”/”urban” transition! So, picking a single “threshold” value as the difference between an urban and rural station is too subjective and arbitrary.
  • Urbanization bias isn’t just a once-off bias that simply appears once a threshold has been reached. Urbanization bias is a continual process that gradually becomes greater as a rural village becomes a small town, then a large town, then a small city, then a thriving metropolis.
  • The factors that contribute to urban heat islands vary from one urban area to another. We saw in Section 2 that Barrow, Alaska (USA) already has a pronounced urban heat island even though it has a population of less than 5,000. If you were only relying on population as a threshold for urbanness, you would probably assume Barrow was unaffected.Similarly, the per capita electricity usage in some countries is much greater than in others. As we discuss in Paper 2, India has roughly 4 times the population of the U.S., but only uses one eight as much electricity. So, if you only relied on night-light brightness as your threshold for urbanness, you would seriously underestimate the number of urban stations in India.
If you want to seriously study the effects of urbanization bias, you can’t just use a simplistic “either/or” approach to distinguishing stations, e.g., see Stewart & Oke, 2012 (Open access).

By taking this simplistic approach, most of the studies failed to properly distinguish between the true climatic trends and urbanization bias.

B. Mistakenly assuming rural station records are just as long and complete as the urban station records
Many of the studies seem to have mistakenly assumed that if you could divide all the stations into two subsets – one “rural” and one “urban” that this would be sufficient to quantify the amount of urbanization bias in the data. While it would be nice if that was all that were required, it is unfortunately just wishful thinking.

As we discussed in Section 2, the problem is that there just aren’t that many rural stations with long, reasonably complete records.

Until a few decades ago, automated weather stations simply didn’t exist. If you wanted to maintain a weather station record you needed to have staff living near by who could take each day’s measurements. This was relatively easy to do in places that were in, or even near, civilisation. But, understandably, most weather observers didn’t want to live in isolated, remote locations. If you did convince an observer to take daily measurements at a remote location for several years, when that observer retired, or perhaps died, you would need to find a replacement, or else the station record would finish.

As a result, most of the truly rural stations have very short records – often with large data gaps. This means that they are not much use for studying long-term temperature trends.

As we explained in Section 1, overcoming the urbanization bias problem is not easy. The authors of the nine sets of studies don’t seem to have realised just how tricky a problem it is.

C. Overuse of “linear trend” analysis
Most of the authors of these 9 sets of studies do not seem to have had much experience in statistics. This is understandable. Statistics can be a tricky subject which requires a quite mathematical frame of mind, and many scientists have never studied it.

However, unfortunately, the analysis that was involved in these 9 studies was quite statistical in nature. It seems that several of the authors involved were simply out of their depth when they were deciding on an appropriate statistical analysis for their study. As a result, they often used very inappropriate techniques which gave them widely misleading results.

A common statistical mistake in the different studies was to use “linear trends” to describe their station data.

Calculating the linear trend for a data series is a relatively simple statistical procedure, and can even be carried out using standard spreadsheet packages, such as
Microsoft Excel. For this reason, it seems to be one of the most popular statistical techniques used in climate science.

Seven of the nine sets of studies considered linear trends as part of their analysis (all except Hansen & Lebedeff, 1987 and Peterson, 2003). For two of the groups (Jones et al., 1990 and Wickham et al., 2013), linear trend analysis made up a major part of their study.

However, weather station records are often highly non-linear

When your data is very non-linear, then using a linear trend to describe the data is very risky. Unless you’re very careful, your conclusions will most likely be meaningless!

Figure 19. Temperature trends for the Valentia Observatory (Ireland) weather station, using several different averaging techniques. Top: yearly averages; Middle: linear trend over whole record; Bottom: linear trends using different 30 year periods. Click on image to enlarge.

Take for instance, the Valentia Observatory (Ireland) weather station. This is one of the longest and most complete rural station records. The top panel of Figure 19 shows the annual trends. Does it have a simple “linear” trend? No.

At various stages throughout the record, the station switched between periods of cooling (e.g., 1860s-1880s or 1950s-1970s) and periods of warming (e.g., 1920s-1940s or 1980s-2000s). The trends are very non-linear.

It is true that you can calculate a “linear trend” for the data (middle panel), but it is basically meaningless. If you calculate the linear trend over the entire Valentia Observatory record, you nominally obtain a slight “warming” trend. But, that is just because the start of the record occurred during the middle of a cooling period, and the end of the record occurred at the end of a warming period!

If you used a shorter length of data to calculate the linear trend, then you can get either a “warming trend” or a “cooling trend”, simply depending on when you start and end your analysis. This is illustrated in the bottom panel, where we show five completely different “linear trends” – all using the same 30 year length, but just using different start and end years.

If you only use linear trends for analysing the temperature record for Valentia Observatory, you might mistakenly conclude, “it shows a ‘warming trend’, and it’s rural, so even the rural stations show ‘unusual global warming'”. In reality, the hottest year on record for Valentia Observatory was 1949, and the recent warm period doesn’t seem at all “unusual”.

Overall results
In all cases we found that their conclusion that urbanization bias is negligible to be false. The reasons why they mistakenly made that conclusion varied from an inadequate analysis of their data to making logical and/or statistical errors in their reasoning. We have a mentioned of these errors above, but for a more detailed analysis see Paper 1.

5. Paper 2. An assessment of the NASA GISS urbanization adjustment method
Summary of Paper 2
The NASA Goddard Institute for Space Studies (NASA GISS) is the only group using weather records to construct global temperature estimates that explicitly adjusts their data to correct for urbanization bias.In Paper 2, we carefully studied and analysed their adjustment method to see if it works. We found that it doesn’t!
We identified several serious flaws in their adjustment method which make their adjustments unreliable, inadequate and inappropriate. We found that their adjustments actually introduced about as many biases, as they removed.

In our paper we offer several recommendations which might help overcome some of these flaws. However, for now, the NASA GISS global temperature estimates are just as unreliable after adjustments, as before.

The NASA Goddard Institute for Space Studies

Figure 20. NASA GISS is located in New York City, in one of the Columbia University buildings. Photograph taken from their website. Click on image to enlarge.

The NASA Goddard Institute for Space Studies (NASA GISS) is one of the five groups that currently publish global temperature trend estimates from weather station records, i.e., they produce one of the curves we showed you at the start of this essay in Figure 1.

They are located in New York City (NY, USA) in one of the Columbia University buildings (Figure 20).

Their offices are located over the iconic New York diner, “Tom’s Restaurant” which featured prominently in the popular TV sitcom, “Seinfeld”, and was the inspiration for Suzanne Vega’s 1987 a capella song, Tom’s Diner, which was in turn used by the inventor of the MP3 digital music format when he was developing the MP3 (see here):

The Goddard Institute has played a very prominent role on both sides of the debate over man-made global warming theory. The founding director of the institute, Dr. Robert Jastrow, who ran the institute from 1961-1981, was a major critic of man-made global warming theory until his death in 2008, e.g., see this 2001 essay.

However, Jastrow’s successor, Dr. James Hansen, who ran the institute from 1981-2013, was (and still is) a very vocal supporter of man-made global warming theory. Indeed, in his 1988 testimony to U.S. Congress he claimed:

It is time to stop waffling so much and say that the evidence is pretty strong that the greenhouse effect is here. – NASA GISS director, Dr. James Hansen, in testimony to U.S. Congress, 23rd June 1988

This 1988 testimony is believed to have been very influential in making man-made global warming theory a public concern, e.g., see here. In addition, he was one of the main scientific advisors to Al Gore for the popular 2006 An Inconvenient Truth film.

When Hansen and his colleagues first started publishing their global temperature trend estimates in the early 1980s, they did not seem to have considered urbanization bias, e.g., Hansen et al., 1981 (Abstract; Google Scholar access). Later, they recognised that it was a problem that needed to be considered, but on the basis of their Hansen & Lebedeff, 1987 (Abstract; Google Scholar access) study, concluded that it was a fairly minor problem. This was one of the 9 sets of studies we mentioned in Section 4, i.e., one of the papers we reanalysed in Paper 1.

However, by the late 1990s, they seem to have decided that it was probably a problem they should take more seriously. They decided to develop a computer program which would automatically search through the weather station records and apply adjustments to remove any urbanization bias.

Since 1999, they have been running this program on their data before they construct their global temperature trend estimates – see Hansen et al., 1999 (Abstract; Google Scholar access).

In the years since Hansen et al., 1999, they have made some modifications to their computer program which they describe in Hansen et al., 2001 (Abstract; Google Scholar access) and Hansen et al., 2010 (Abstract; Google Scholar access), and on their “GISTEMP” website.We discuss these modifications and their significance in Paper 2.
When the Goddard Institute ran their program on the roughly 6,000 station records that they use, they found that the program made quite a lot of adjustments. However, the net effect of the adjustments on their global temperature trend estimates was very small (roughly -0.05°C/century). As a result, their “urbanization bias-corrected” global temperature trend estimates was pretty much the same as the estimates of the other groups who didn’t apply any urbanization bias corrections (you can see this by looking back at Figure 1, at the start of the essay).

This seems to have convinced many people that the urbanization bias problem is fairly negligible.

In Paper 2, we decided to carefully analyse this computer program, and check to see if it actually worked. We found that it doesn’t, and actually introduces as many biases as it removes! But, before we discuss our analysis, it will probably be helpful to outline exactly what their computer program does.

The basic idea of NASA’s approach
The basic idea behind the Goddard Institute’s adjustments is as follows:

  1. Divide all of their weather stations into two groups: “urban stations” and “rural stations”. Since 2010, they have been doing this on the basis of the night-light intensity in the location of the station (using satellite data).
  2. For every station that the computer identifies as “urban”, the computer works out an individual urbanization bias adjustment, using the following method:
    • A “rural average” is calculated for the urban station by averaging together the trends of all of the rural neighbours in a 500 km radius (or 1000 km, if there aren’t enough within 500 km).
    • The difference between the urban station record and the rural average is then calculated, and assumed to be “the urbanization bias”.
    • The urbanization adjustment is calculated by approximating the difference using a linear fit. However, because urbanization is not a simple linear process, they use a two-part adjustment. In other words, they calculate two linear fits (see the middle panel of Figure 21) – “Leg 1″ is the linear fit for the first part of the record, and “Leg 2″ is the linear fit for the second part of the record. The point marking the transition between Leg 1 and Leg 2 is adjusted by the program in order to optimise the fits.
  3. This adjustment is added to the urban station’s record (Figure 21), and the record is then assumed to have been adequately corrected.

Figure 21. Example of how NASA adjust station records to account for urbanization bias. The values in the middle panel are added to the red record in the top panel to give the blue record in the bottom panel. Click on image to enlarge.

Currently, the Goddard Institute use about 6,000 stations, of which they identify about half as being “urban” and apply adjustments to. For about 200 of the urban stations, they do not have enough rural neighbours for their computer program to work, and so these unadjusted urban stations are not included in their global temperature estimates.

A surprising decision that the Goddard Institute made when they were writing their program was that they add their adjustments in reverse to their urban station records, rather than simply subtracting them.

To understand what we mean by this, have a careful look at the adjustments in Figure 21. At the start of the unadjusted Phoenix record, the average annual temperature was roughly 20-21°C. At the end of the record, this had risen to 24-25°C. The Goddard Institute’s computer program calculated that about 3°C of this warming was urbanization bias.

However, rather than subtracting this 3°C from the modern biased temperatures, their program adds 3°C to the early unbiased temperatures. In effect, the program is “rewriting history”, and pretending that Phoenix has always been 3°C warmer.

Now, you might argue that this doesn’t really matter. After all, they’re not interested in the actual temperature is at Phoenix, they’re just interested in what the trend is, i.e., is it getting warmer or colder. However, it is an unnecessarily confusing approach.

In addition, because urbanization bias continues to increase from year to year, this means that they have to keep on increasing their adjustments every year, meaning that “history is continuously being rewritten”. There doesn’t really seem to be any good reason for taking this approach. On the contrary, it seems to have led to a lot of unnecessary suspicion and cynicism amongst the public, e.g., here.

At any rate, the most important thing is figuring out how successful NASA’s adjustments are. You might have assumed that this would have been one of the first things that they would have tested. However, surprisingly, they don’t seem to have ever checked if their adjustments were actually removing the urbanization biases from their data!

Instead, it seems that once they had written their computer program, they assumed that it would work. As we will see below, this was an unwise assumption, because their method doesn’t work.

Most of NASA’s adjustments are nonsensical
Do you remember how each of NASA’s adjustments consists of two parts, and that each of the parts is a linear adjustment? We can define each of these parts in terms of its “slope”, which tells us whether the line goes “up” as we go from left to right (“positive slope”) or “down” as we go from left to right (“negative slope”).

If you are unfamiliar with the difference between negative and positive slopes, here is a 3 minute explanation:

According to NASA’s computer program, the more negative the slope is, the more urbanization bias there is. So, for a typical urban heat island we would expect the first part of the adjustment to be slightly negative, and then the second part to be even more negative.


Figure 22. Adjustments applied by NASA to the Piura (Peru) station record. Click on image to enlarge.

However, bizarrely, about half of the linear adjustments their computer program calculates have positive slopes, e.g., Figure 22. In other words, the program is calculating the “urbanization bias” to be due to “urban cooling“, and not “urban warming”!!!

We decided to group all of NASA’s urbanization adjustments into four different types, depending on the slope of each part:

  • Type 1: The slopes for both parts are negative, e.g., Figure 21. This is the normal expected adjustment, because it would remove urban warming bias. However only about 15% of the adjustments were of this type!
  • Type 2: The slopes for both parts are positive, e.g., Figure 22. This is the opposite of what should be occurring! About 9% of the adjustments were of this type.
  • Type 3: The slope for the first part is negative, but the second part has a positive slope, e.g. Figure 23. About 39% of the adjustments were of this type.
  • Type 4: The slope for the first part is positive, but the second part has a negative slope. About 37% of the adjustments were of this type.

Figure 23. Adjustments applied by NASA to the Dublin Airport (Ireland) record. Click on image to enlarge.

Figure 23 shows a typical Type 3 adjustment. The first part of the adjustment removes a warming trend from the urban record, as we would expect. However, the second part introduces a warming trend, i.e., the opposite of what we should expect.

Type 4 adjustments are similar, but just the other way round, i.e., the first slope is positive and the second slope is negative. The vast majority of NASA’s adjustments (76%) are either Type 3 or 4. Since both types include a “cooling bias” adjustment, that means that only 15% of NASA’s adjustments are the expected adjustments to remove urbanization bias.

Hansen et al. point out that urbanization can sometimes lead to an artificial “cooling” bias, e.g.,

Anthropogenic effects can also cause a non-climatic cooling, for example, as a result of irrigation and planting of vegetation, but these effects are usually outweighed by urban warming. - Hansen et al., 1999 (Abstract; Google Scholar access)

On this basis, they seem to have decided that it doesn’t matter whether their computer program removes a warming trend from the data or introduces one! It seems they reckon if their program decides there is a “cooling bias”, then it must be right.

However, as we discuss in Paper 2, while it is true that there are some types of urban development which can introduce cooling under certain conditions, these “urban cooling” trends are very limited and rare. Urbanization bias is almost entirely a warming bias – that’s why we get Urban Heat Islands.

At any rate, they certainly shouldn’t be occurring for 85% of the urban stations, which is what NASA’s adjustment program calculates. Indeed, it contradicts Hansen et al., 1999’s own (correct) claim quoted above that [urban cooling] effects are usually outweighed by urban warming.”!

NASA’s net adjustments are physically unrealistic

Figure 24. The gridded average net effect of NASA’s urban adjustments on all their urban stations. The dotted lines indicate the error bars associated with the averages (2 S.E.). Click on image to enlarge.

As we discussed above, for almost all of NASA’s adjustments to remove an urban warming trend there is an equivalent adjustment to remove an “urban cooling” trend from another station.

As a result, the net effect of all the adjustments was very small, i.e., about -0.1°C/century (Figure 24). Since NASA only identified about half of the stations as being urban, the overall effect on their global temperature estimates was only half of that, i.e., about -0.05°C/century.

We can see why this result helped convince the other groups that they didn’t really need to worry about urbanization bias. They probably thought that if NASA had developed a program to explicitly correct for urbanization bias, but it only removes about 0.05°C/century, then it’s not a big deal.

Of course, the reason why the net adjustments were so small is that the individual adjustments were mostly nonsensical, as we saw above!

At any rate, even if their computer program were right about the net magnitude of the adjustments being small, the actual year-to-year variations of the net adjustments are physically unrealistic. For instance, we can see from Figure 24 that their program calculated that urbanization led to a net “cooling” during two periods – 1880s-1890s and 1930s-1960s. This is in itself nonsense.

However, worse still, there is almost no net adjustment for the period from the 1970s to present. This is arguably the period which has seen the most urban development of all. So, the fact that NASA’s adjustments peter out to nothing during this period beggars belief.

NASA’s adjustments don’t even work on the most heavily urbanized metropolises
As a simple test to see how reliable NASA’s adjustments are, we selected a sample of stations from the largest urban areas in the world today. On average, these stations should be strongly affected by urbanization bias. So, if NASA’s computer program is at all effective, then it should be removing a lot of warming from these stations.

We identified the most highly urbanized stations in terms of associated population and night-light brightness. We only selected stations with an associated population greater than 2 million, and had a very high night-light brightness according to two different satellite estimates. This gave us 116 stations from a total of 47 urban metropolises (a lot of the metropolises had more than one station).


Figure 25. Top panel shows the gridded average adjustments applied by NASA to the stations in the most heavily urbanized metropolises. The bottom panel shows the population growth associated with those areas. Click on image to enlarge.

The average adjustments NASA’s computer program applied to this sample are shown in Figure 25.

We can see that, as expected, the program applied quite heavy adjustments to the early part of the records, removing about 0.8°C/century of a warming trend from the period from 1895-1980.

So far so good, … however, instead of these adjustments increasing for the 1980s, 1990s and 2000s, the adjustments actually dramatically decreased for the post-1980 period!!! By the 1990s, the net adjustments were essentially zero.

The bottom panel of Figure 25 shows the total population growth of the 47 metropolises. Although population isn’t an exact measure of urbanization, there is no justification in the population data for NASA’s sudden 1980 decrease in adjustments.

Their computer program failed the test.

Some of the flaws in NASA’s computer program
In our paper, we identified several major flaws in NASA’s adjustment methods:

  • Their rural identification is unreliable, and a lot of the stations they identify as “rural” are actually urban
  • If the rural records end before the urban records, NASA’s program stops adjusting the urban records. But, rather than deleting the bits of the record it couldn’t adjust, it keeps the rest of the record unadjusted! As we mentioned in Section 2, there is a severe shortage of long rural records (we will elaborate on this in Section 6). So, this is a very frequent problem.This is a doubling insidious problem. Not only are the urban records included unadjusted for those periods, but because there aren’t enough rural stations to carry out the adjustments, that also means that they aren’t being included in the regional trends for that area. That is, there are no non-urban stations in the area to in any way dilute the urbanization bias for the region.
  • NASA explicitly assume that the rural records have no non-climatic biases. This is a serious problem. For instance, if a rural station underwent a station move which accidentally increased the temperature, then this would increase the trend of the “rural average”, and would fool the computer program into thinking the urbanization bias at that station was less than it actually was. It could even fool the program into thinking the urbanization bias was a cooling bias.
We discuss the significance of these (and other flaws) in Paper 2, but the bottom line is that the adjustment method they programmed into their computer program is seriously flawed.

Conclusion: NASA’s adjustments don’t work.
The “urbanization bias” corrections their computer program calculates are unrealistic, unreliable, inadequate, and often just plain inappropriate!

Their program introduces at least as many biases as it removes.

The main problem seems to be that they once they developed their computer program, they seem to have just assumed it would work, and started using it, without proper testing.

If their computer program was a commercial software package for a proper software company (e.g., Microsoft or Adobe), this would never have happened. As soon as customers started noticing that the program doesn’t actually work, they would have been inundated with complaints. However, because the developers of the computer program (the Goddard Institute) are the only “customer”, it seems they simply never noticed that it doesn’t work.

The urbanization bias problem is a very challenging one. NASA seem to have severely underestimated just how challenging it is.

6. Paper 3. How heavily urbanized are the stations used in the global temperature estimates?
Summary of Paper 3In Paper 3, we carried out a detailed assessment of the extent of urbanization bias in the Historical Climatology Network datasets. These are the main weather station archives used for the current global temperature trend estimates.
We found that the U.S. components included a relatively high number of rural stations with long records, making them somewhat reliable. However, we found that urbanization bias is still a problem for the dataset, and the subset of U.S. stations that were urban showed an average urbanization bias of about 0.7°C/century.

In the rural subset of U.S. stations, the recent warm temperatures aren’t actually that unusual, and it seems that it was at least as warm in the 1930s.

As for the rest of the world, almost all of the rural stations in the dataset have records which are too short and/or are missing large periods of data. Only eight of the rural stations have data for at least 95 of the last 100 years! This is simply not good enough for estimating “global temperature trends”.

The National Climatic Data Center who compile and maintain the Historical Climatology Network datasets have developed a series of “homogenization” adjustments, which they believe remove any non-climatic biases from the data.

They have claimed that these adjustments have substantially reduced the urbanization bias problem. We show that this claim is wrong. Their homogenization algorithm is woefully inappropriate. Instead of removing urbanization biases, it merely spreads the biases amongst all stations – urban and rural!

In Paper 3, we attempted to estimate how badly affected by urbanization bias the data is. To do this, we studied the main weather station dataset used by the five different groups, i.e., the Historical Climatology Network datasets.

A. How widely used are the Historical Climatology Network datasets?
NOAA’s National Climatic Data Center compile and maintain the main weather station datasets used by the five groups currently publishing global temperature trend estimates, i.e., the ones we mentioned at the start of the essay in Figure 1. The main dataset is known as the Global Historical Climatology Network (GHCN), but a large component of this dataset is also available as a separate dataset called the U.S. Historical Climatology Network (USHCN). Collectively, we refer to these datasets as the Historical Climatology Network.

Some of the groups rely almost exclusively on the Historical Climatology Network:

  • The National Climatic Data Center uses it for all 7280 of their station records.
  • NASA’s Goddard Institute for Space Studies uses it for 6280 out of their 6322 stations, i.e., 99.3%.
  • The Japan Meteorological Agency uses it for 3883 out of their 3900 stations, i.e., 99.6%.
At first glance, it appears that the other two groups (Climate Research Unit and Berkeley Earth) are using fairly independent datasets. The Climate Research Unit only directly obtains less than one third of its station records from the Historical Climatology Network (1617 out of 5583), and the Berkeley Earth group gets less than one fifth of its records from them (7280 out of 39028).

However, a closer inspection of these other datasets reveals that they actually overlap very heavily with the Historical Climatology Network datasets.

The Climate Research Unit was one of the first groups to construct a weather station record dataset in the 1980s, e.g., see Jones et al., 1986 (Open access). So, when the Global Historical Climatology Network was first released in the 1990s, the Climate Research Unit only started using it for the station records they didn’t have.

But, when the National Climatic Data Center were constructing the Global Historical Climatology Network, they were mostly using the same data sources that the Climate Research Unit had used – see Peterson & Vose, 1997 (Open access). In fact, one of their main data sources was the Climate Research Unit’s datasets!

For this reason, it has been estimated that more than 98% of the station data used by the Climate Research Unit either comes from the Historical Climatology Network, or else is derived from one of the data sources used for constructing the Historical Climatology Network, e.g., see McKitrick, 2010 (Open access).

The Berkeley Earth group use the Global Historical Climatology Network dataset, but they have combined it with several other datasets to create a much larger dataset than any of the others. The Berkeley Earth dataset contains records for nearly 40,000 stations, i.e., more than 5 times the number of stations in the Global Historical Climatology Network.

However, more than half of these stations in the Berkeley Earth dataset have very short records (less than 30 years of data). So, when the Berkeley Earth group are using their dataset for studing long-term trends, they are predominantly relying on the Global Historical Climatology Network component of their dataset.

Indeed, in one of the Berkeley Earth groups main studies, they just used the Global Historical Climatology Network, i.e., Rohde et al., 2013 (Open access).

In other words, all of the groups rely very heavily on the Historical Climatology Network datasets. This means that to assess the extent of urbanization bias in each of the groups’ estimates, we can safely limit our analysis to the Historical Climatology Network…

B. How badly affected by urbanization bias are the datasets?
The U.S. component
As we mentioned in Section 2, when the National Climatic Data Center were constructing the U.S. Historical Climatology Network, they were able to take advantage of a very large collection of U.S. station records from the Cooperative Observer Program (COOP) dataset. Many of these stations were rural, and so they were able to construct a relatively rural dataset, with relatively long and complete station records – see Karl et al., 1988 (Open access).

In total, the U.S. Historical Climatology Network contains 1218 station records. The average length of the station records is 93 years, which is relatively long, and more than a fifth of them (277) are still rural today. In addition, only 99 of the stations are highly urbanized (in terms of population and average night-light intensity).

So, the U.S. component of the Historical Climatology Network is reasonably rural. Having said that, we saw in Section 2 (Figures 12 & 13) that the highly urbanized stations are significantly affected by urbanization bias, with the bias introducing a warming bias of roughly 0.7°C/century.

Some of that bias seemed to be due to different ratios in the various observation practices made at different stations, because, when we applied adjustments to correct for changes in “Time of Observation”, the difference between the urban and rural stations was reduced by about 0.2°C/century.However, as we discussed in our “Has poor station quality biased U.S. temperature trend estimates?” paper (summarised here), the Time of Observation adjustments also seem to make the poor station exposure biases more pronounced, i.e., the total amount of non-climatic biases is about the same.
The rest of the dataset
Unfortunately, the rest of the Global Historical Climatology Network is nowhere near as useful.

It is true that nearly one third of the stations in the dataset are still rural (1987 out of the 6051 non-U.S. stations). However, almost all of these rural stations have very short records. Most of the station records only have data in the 1950-1990 period, which as we discussed in Section 3, is not long enough to study long-term temperature trends.

Only eight of the rural stations actually have data for at least 95 out of the last 100 years:

  1. The Pas, Manitoba (Canada)
  2. Angmagssalik (Greenland)
  3. Lord Howe Island (New Zealand)
  4. Sodankylä (Finland)
  5. Hohenpeißenberg (Germany)
  6. Valentia Observatory (Ireland)
  7. Sulina (Romania)
  8. Säntis (Switzerland)
The Säntis weather station was set up in 1882, and has been in operation almost continously since then. Because it is located at the top of a tall mountain in the Swiss Alps (i.e., Mount Säntis), when it was first set up, it was quite difficult to get to. There was no cable car at the time, and especially during the winter, the weather station observers would have to stay up there for months on their own. Despite that, it was quite a lot of competition for the job, as it was well paid. Plus, the views are spectacular!

So, there was no shortage of candidates for the position. Indeed, in 1922, Gregor Kreuzpointner, a failed candidate for the job climbed up to the station and murdered the station observer and his wife who had the job (Josef & Maria Haas). The murders were discovered a few days later when people wondered why the weather reports had stopped. See here for a description (in German).


Figure 26. Photographs of the Säntis weather station in 1901 (via Jens Heling) and 2007 (via the About Switzerland website). Click on image to enlarge.

It is still definitely a rural location, and so is unlikely to be affected by urbanization bias.

However, it is important to remember that does not meant that it is unaffected by other non-climatic biases. There have been a lot of changes associated with the station.

For instance, in 1955, a 123.5m high TV and radio transmitter was built beside it, and it is now the location of a large hotel (Figure 26), that is a popular tourist destination, e.g., CZ Tan has some nice photographs of her visit there on her blog. In addition, the Swiss meteorological agency replaced the instruments used for weather measurements in the late 1970s to automated instruments, so that manual observations were no longer needed – see Begert et al., 2005 (Open access).


Figure 27. Photographs of the Hohenpeißenberg weather station in 1897 and 2007. Downloaded from the German Wikipedia article about the station. Click on image to enlarge.

Similarly, there have been quite a few changes at the Hohenpeißenberg (Germany) station, since it first was set up in 1781. For instance, in the 18th and 19th centuries, temperatures were measured indoors, while now they are measured outdoors (Figure 27).

By using Google Earth, we were able to locate the current location for the Sulina weather station – on a concrete platform a few metres from the River Danube (Figure 28). However, the weather station has been relocated several times over the course of its record. For example, during World War 2, it was moved 140 kilometres south to the town of Constanta. Also, the official co-ordinates for the station are for a different spot, near the town centre, 5 kilometres to the west of its current spot. This suggests that the Sulina station has only recently moved to its current location.


Figure 28. Current location of weather station for Sulina (Romania). Photograph by Ion Bezergheanu, downloaded from source). Click on image to enlarge.

It is possible that any of these changes (or others) could have altered the local microclimate at these stations (a problem we discuss in this essay), or introduced some instrumental biases.

If there are non-urban-related biases in these records, then we cannot solely rely on them for working out what the long-term global temperature trends are.

Of course, this is a problem for all weather records. It has been estimated that station changes which could potentially introduce a non-climatic bias occur on average about once every 20 years, e.g., Karl & Williams, 1987 (Open access). However, the problem is that there are so few rural stations with long records that the only neighbouring stations that you can compare their records with are either potentially affected by urbanization bias, or else don’t have enough data!

Outside of the U.S., there are only EIGHT station records in the Historical Climatology Network that are fully rural, and have data for at least 95 of the last 100 years. This is not enough for working out long-term “global” temperature trends!
This is an insidious problem. Frankly, we do not believe it is possible to extract a meaningful estimate for the 20th century “global” temperature trends from the data that is currently available.

There does seem to be enough rural stations with long records to be reasonably confident about the U.S. temperature trends for the 20th century, but not for the rest of the world.

Having said that, we think it should be possible to collect a lot more data which could allow some sort of reasonable analysis.

For instance, when the National Climatic Data Center were compiling the Global Historical Climatology Network, they were doing this effectively from the office, e.g., see Peterson & Vose, 1997 (Open access). They don’t seem to have actually visited any of the stations, or tried to find out any “station history” information about the stations. Many meteorological organisations keep quite detailed station history files, and keep track of any reported station relocations, modifications to the surroundings or changes in instrumentation or measuring techniques.

If these history files were publically archived and the stations were individually inspected then maybe we would be able to identify some of the more serious non-climatic biases. It might also be possible to find longer and more complete records for some of the other rural stations.

Then, it might be possible to make some meaningful estimates of long-term global temperature trends from the weather records. However, until then, it is foolish to attempt it.

C. Does NOAA’s homogenization remove the problem?
Like NASA Goddard Institute for Space Studies, the National Climatic Data Center have also written a computer program which they believe removes non-climatic biases from their weather station dataset. This program is described by Menne & Williams, 2009 (Open access) and adjusts each of the weather station records in their dataset so that it better matches those of its neighbours.

This process is called “homogenization”, because after adjustment, all of the stations show pretty much the same trends, in the same way that homogenized milk has a uniform texture throughout the milk.

The National Climatic Data Center have run this computer program on their Historical Climatology Network datasets, and provide the users of their data the choice to use the original datasets or their homogenized versions.

Many people believe that the homogenization process is somehow able to remove the urbanization biases from the data, and that they don’t need to worry about urbanization bias as long as they use the homogenized versions of the datasets, e.g., Menne et al., 2009 (Open access).

For this reason, in Paper 3, we also checked to see if this belief was valid, i.e., does NOAA’s homogenization remove the problem?

The answer is no.

Essentially, all their homogenization program does is to spread the non-climatic biases evenly amongst the different stations, whether the stations were originally biased or not.

It is the same problem we discussed in our essay on the problem of poor station quality in the U.S. dataset.

Before homogenization, many of the urban stations are affected by urbanization bias, but the rural stations aren’t.

The homogenization process adjusts all of the records so that each record better matches its neighbours. If an urban station is much more affected by urbanization than its neighbours, then this process will reduce the bias to better match the neighbours… So far, so good.

However, what happens if a rural weather station is surrounded by urban stations? The rural station is not biased by urbanization, but all of its neighbours are. Therefore, NOAA’s computer program introduces biases into the rural station’s record so that it “better matches its neighbours”. That’s not good!


Figure 29. Photograph of the Buenos Aires weather station. Via Panoramio, by geir-ole. Click on image to enlarge.

Sadly, as we saw throughout this essay, the rural stations are in the minority, particularly amongst stations with relatively long records. So, NOAA’s computer program introduces urbanization bias into the rural records more often than it removes it from the urban records.

We discuss the flaws with NOAA’s computer program in more detail in Paper 3, but we can illustrate the consequences simply by looking at the homogenization adjustments the computer program works out for two example stations:

  1. A weather station which we know is highly affected by urbanization bias, the Buenos Aires station we discussed in Section 2
  2. A weather station which is not affected by urbanization bias, the rural Valentia Observatory station which we discussed in Section 4

Figure 30. Google Earth aerial photograph showing the location of the Buenos Aires weather station. Click on image to enlarge.

Figure 30 shows the Buenos Aires weather station at Observatorio Central de Buenos Aires. This is the station whose record we discussed earlier (in Section 2).

The station is located in Agronomía, which is a district right in the centre of Buenos Aires, Argentina.

Although the station itself is located in a park (34°35’24″S, 58°29’01″W), the park is in a very heavily populated area (population density = 6,600/km2), and the station is only 85m from the edge of the park (Figure 32).


Figure 31. Google Earth aerial photograph showing the location of the Buenos Aires weather station, using NASA Earth City Lights overlay. Click on image to enlarge.

Indeed, if we use NASA’s satellite measurements of the average night-time city lights as an estimate of the amount of urbanization in the area, then we can see from Figure 31 that the station is right in the middle of a very heavily urbanized area.

Now, if NOAA’s computer program is indeed able to remove the non-climatic biases from the station records, it surely must remove a substantial warming trend from the Buenos Aires record to get rid of the urbanization bias. Right?

So, what adjustments does it calculate for Buenos Aires?


Figure 32. The ‘homogenization’ adjustments applied by the National Climatic Data Center to the Buenos Aires station record. The bottom panel indicates the neighbouring stations they used for calculating these adjustments. Click on image to enlarge.

Figure 32 shows the adjustments that NOAA’s homogenization program applies to the Buenos Aires record. Nothing!

As we discussed in Section 2, we know that the Buenos Aires record is affected by urbanization bias. Figuerola & Mazzeo, 1998 (Open access) even went out and measured the urban heat island in Buenos Aires. But, NOAA’s computer program did nothing about it!

Why?

Well, if you look at the bottom panels of Figure 32, you can see that most of the neighbours the program used are urban stations, i.e., the neighbours are also affected by urbanization bias. The few rural neighbours that are around only have fairly short records (remember the Punta Indio station from Section 2?).


Figure 33. Photographs of the Valentia Observatory, Ireland weather station. 51.938°N, 10.248°W. Via Global Atmosphere Watch, World Meteorological Organization. Click on image to enlarge.

What about our second example station, Valentia Observatory?

As can be seen from Figures 33 and 34, the Valentia Observatory weather station in Co. Kerry, Ireland is very rural.

There is a nearby town, Cahirsiveen, but the station is about 0.5km outside of the town, and the town is relatively small (pop. 1,294 in 2006). In other words, it is unlikely to be badly affected by urbanization bias.

Valentia Observatory also happens to be one of the longest and most complete rural station records in the dataset.


Figure 34. Google Earth aerial photograph showing the location of the Valentia Observatory, Ireland weather station. 51.938°N, 10.248°W. Click on image to enlarge.

As we mentioned earlier, Valentia Observatory is one of only eight rural stations with data for at least 95 of the last 100 years (aside from the U.S. dataset, that is).

In other words, it is one of our only rural station records that we can use for studying long-term temperature trends.

So, what does NOAA’s computer program reckon should be done to it?

Figure 35 shows the adjustments NOAA’s program applies to the Valentia Observatory record.

Unlike the Buenos Aires record, which it reckoned was perfect as it was, it decides that it needs to introduce a warming trend of roughly 0.4°C/century into the Valentia Observatory record.


Figure 35. The ‘homogenization’ adjustments applied by the National Climatic Data Center to the Valentia Observatory station record. The bottom panel indicates the neighbouring stations they used for calculating these adjustments. Click on image to enlarge.

Did the program figure this out by comparing it to rural stations?

No, because there are no nearby rural stations that would have a long enough record to compare it to.

Instead, the program introduces the warming so that the Valentia Observatory record better matches the records of its urban neighbours!

Figure 36 shows the effect of these adjustments. Before homogenization (top panel), the Valentia Observatory record varies between periods of cooling and periods of warming.

As we discussed in Section 4, for the Valentia Observatory record, the recent 1980s-2000s warming doesn’t seem particularly unusual, and the hottest year on record occurred in 1949.


Figure 36. The Valentia Observatory station record before and after the National Climatic Data Center’s ‘homogenization’ adjustments. Click on image to enlarge.

However, after homogenization (bottom panel), most of the cooling periods have been eradicated, and the record shows an almost continuous warming trend since the end of the 19th century.

As a result, it makes the last decade or so seem “unusually warm”. In other words, it looks pretty much like the “global temperature trends” we saw at the start of the essay in Figure 1.

Essentially, NOAA’s computer program leaves urbanization bias in the urban stations and adds extra warming into those rare rural stations which didn’t have urbanization bias beforehand.

7. Conclusions
The main basis for the claim that there has been “unusual” global warming since the late 19th century is that the global temperature estimates constructed from weather station records suggest a warming trend of about 0.8-1.0°C since about 1880. Man-made global warming theory predicts that the increases in the atmospheric concentration of carbon dioxide since the Industrial Revolution should have caused some “man-made global warming”. So, this has led many people to conclude that the “unusual” global warming implied by the weather station records is man-made global warming from our fossil fuel usage.

Unfortunately, many of the weather station records used for these estimates are affected by urbanization bias. Urban areas are generally warmer than surrounding rural areas. As a result, the urbanization which has been occurring since at least the 19th century across the world has introduced an artificial warming bias into the records of most of the weather stations with long records. In other words, much of the “unusual global warming” is simply an artefact of urbanization bias in the weather station records, i.e., not man-made global warming!

Urban heat islands cause genuine warming in urban areas, and can contribute to serious health problems during the summer, as they can make heatwaves more severe. However, they are a localised phenomenon, i.e., they do not affect global temperatures. They certainly have nothing to do with the atmospheric concentration of carbon dioxide!

So, treating urbanization bias as evidence of “unusual global warming” was a serious mistake.

It has been widely-claimed that urbanization bias isn’t a problem for the global temperature estimates. Several justifications for this claim have been made. In all cases, we found the claim to be unjustified:

  • Several studies have claimed to have proven that urbanization bias is only a negligible problem.However, when we revisited each of these studies we found that the authors had made basic mistakes and/or had not completely analysed their data.
  • Some groups have developed data adjustment procedures (“homogenization techniques”) which were assumed to have “removed” the urbanization bias from the weather station records.We identified serious flaws in these adjustment procedures, and discovered that they had not succeeded in removing the urbanization biases, and had actually introduced new biases!
  • Several researchers have pointed to various other indicators as evidence of “global warming”, e.g., Arctic sea ice records, ocean heat content measurements, or animal and plant migration patterns.However, all of these indicators are either too short to compare recent temperatures to temperatures before the 1950s, or else are affected by non-climatic biases.
When we study those rare records which are still definitively rural, and have data for at least 95 of the last 100 years, we find that there has been some “global warming” during the 1980s-2000s. However, it follows an equivalent amount of “global cooling” during the 1940s-1970s. In other words, it seems to have been just as warm in the 1930s and 1940s as it is now!

Looking further back, we find some evidence that this alternation between “cooling” and “warming” periods also occurred in the 19th and 18th centuries. This suggests that it is a naturally-occurring cycle which has nothing to do with “man-made global warming”.

It seems that the 1980s-2000s “global warming” was just a natural phenomenon, that was mistakenly exaggerated by some researchers who had failed to properly deal with the non-climatic biases in their data

@Tyger I am very interested in your thoughts after you read this actual scientific information that is not based on horribly inaccurate climate models.
Same to you Burnt. What are your thoughts?
I won't ask mike, he took his ball and went home I guess.

Its actually A Science overview of science for science, not us, we are just lucky they put in 100s of hours putting the summaries together for none science folk.

@Tyger I am very interested in your thoughts after you read this actual scientific information that is not based on horribly inaccurate climate models.
Same to you Burnt. What are your thoughts?
I won't ask mike, he took his ball and went home I guess.
As I said I think that the Connolly's, like both sides of the climate debate, manipulate data for their own means so I can't agree that there is definitive science being presented here. They dismiss all models and data with broad strokes for the benefit of their model - that's no different than what you critique. The only difference is one of personal opinion.

Imho that's just more biased opinion. I also feel that legitimacy is found in existing journals and I question just how valid it is when it represents no nuances, just a one sided position that wants its own debate space instead of trying to participate in the existing Public Scientific Community. If, as climate change denial purports that most scientists disagree with AGW, then why wouldn't they be participating directly in that comunity of supposedly like minded scientists? Is it because they are not relevant?

These are real and direct questions you can answer pixel. Can you do that?

This is all so simple:
1. Of course it's a natural occurrence;
2. Of course some humans pump more junk into the air than others (China, India, Pakistan et al), but the impact is smog and unbreathable air regionally more than turning us into Venus;
3. Much (if not most) of the drive to regulate greenhouse gasses is regulation, i.e. increased government intervention ergo tax revenue. Any time governments push something hard rest assured the reasons aren't altruistic.
4. Scientists purporting that this is predominantly man-made are paid off, ignorant, politically biased or some combination of all three. Plain and simple.
5. CO2 is what plants use to help create O2. How making a little more of that is a problem evades me.

Back
Top
